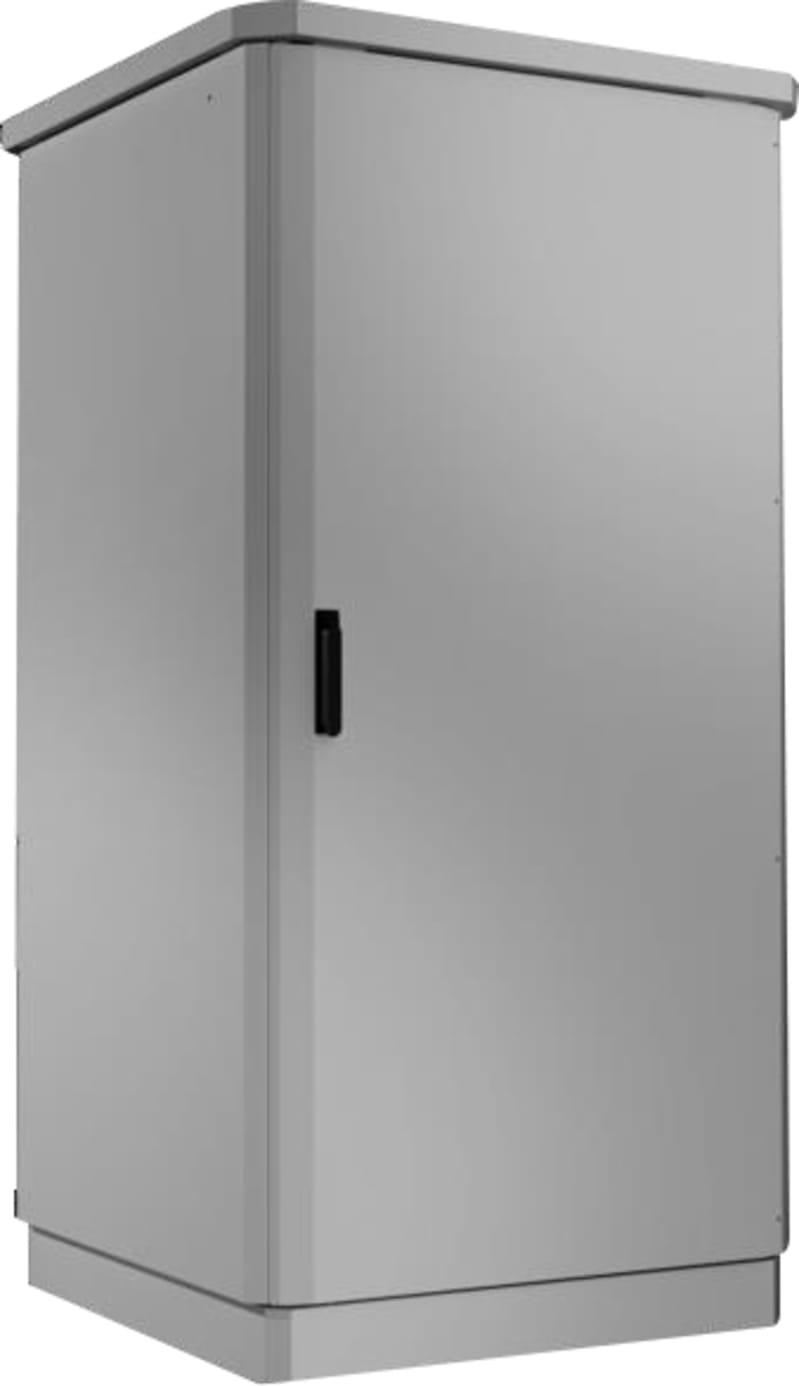

Rittal CS TopTec Outdoor Enclosure 800 x 1600 x 800 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9868500 (CS 9868.500) is a CS TopTec double-walled outdoor enclosure 800 x 1600 x 800 mm, closed and fully preconfigured. The housing frame is stainless steel 1.4301 (AISI 304) with aluminium AlMg3 panels, powder-coated UV-resistant pure polyester in RAL 7035, and includes a 100 mm transport plinth and a rain canopy with overhang on all sides. Front door with door stay, swing-lever handle and semi-cylinder lock; degree of protection IP55 / NEMA 3R and 12; impact strength IK10. Country of origin Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 9868500
- EAN / GTIN
- 4028177962729
- Sales unit
- pcs
- Model designation
- CS 9868.500
- Product type
- CS Toptec
- Version
- Without cut-out
- Material
- Housing frame: Stainless steel 1.4301 (AISI 304); Enclosure panels and base/plinth panels: Aluminum
- AlMg3; Rain canopy
- Aluminum
- Surface finish
- Powder-coated; UV-resistant pure polyester
- Color
- RAL 7035
- Supply includes
- Double-walled outdoor housing, fully preconfigured; Enclosure frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels; Front door with door stay, swing lever handle and semi-cylinder, lock; BJ20027; Side panels left and right; Rear panel; Rain canopy; Base/plinth with screw-fastened flange plates and screw-fastened trim panels front and rear
- Dimensions
- Width: 800 mm; Height: 1,600 mm; Depth: 800 mm
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 3R; NEMA 12
- IK code
- IK10
- Base material
- Aluminum
- Packaging unit
- 1 pc(s).
- Net weight
- 110 kg
- Gross weight
- 116 kg
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Grey
- Width
- 894 mm
- Height
- 1745 mm
- Depth
- 894 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- Yes
- Wall fastening possible
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- Yes
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 360 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177962729
- SAP 1200596672
- Code 82973209
Product Documentation
