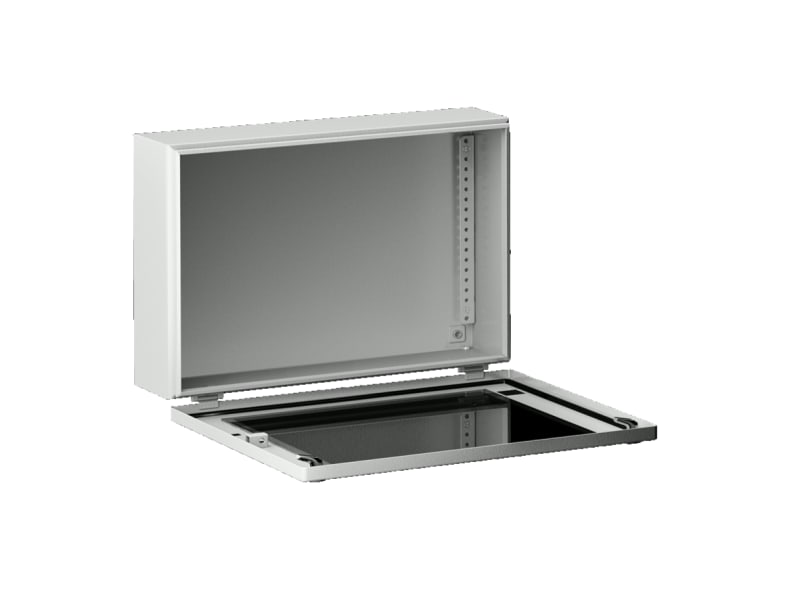

Bus-cabinet KX 400X200X155
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1610000 Manufacturer description: KX Bus enclosure, WHD: 400x200x155 mm, sheet steel, with solid base, with hinged cover and viewing window. KX Buskapsling, BHD: 400x200x155 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1610000
- EAN / GTIN
- 4028177816671
- Sales unit
- pcs
- Model designation
- KX 1610.000
- Version
- with viewing window
- Material
- Housing: Carbon steel; Cover: Carbon steel, all-round foamed-in PU seal; Viewing window: Polycarbonate, 4 mm1
- Surface finish
- Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
- Color
- RAL 7035
- Supply includes
- Housing with hinged cover; Sight glass in cover; Mini-fasteners
- Protection category NEMA
- NEMA 1; NEMA 12
- Protection category IP to EN 60 529
- IP 65
- Type rating according to UL 50E
- Type 1; Type 12
- IK code
- IK08
- Dimensions
- Width: 400 mm; Height: 200 mm; Depth: 155 mm
- Material thickness - cover
- 1.25 mm
- Material thickness - enclosure
- 1.25 mm
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 3.9 kg
- Gross weight
- 3.95 kg
- PCF/VE (cradle-to-gate)
- 35.21 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- Bureau Veritas; C-UL; DNV; Lloyds Register
- Colour
- Grey
- Width
- 400 mm
- Height
- 200 mm
- Depth
- 155 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 2
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- Yes
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP65
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- Yes
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 200 N
- Max. permitted load of the door(s) according to IEC 62208
- 25 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177816671
- SAP 1200380075
- Code 82389398
Product Documentation
