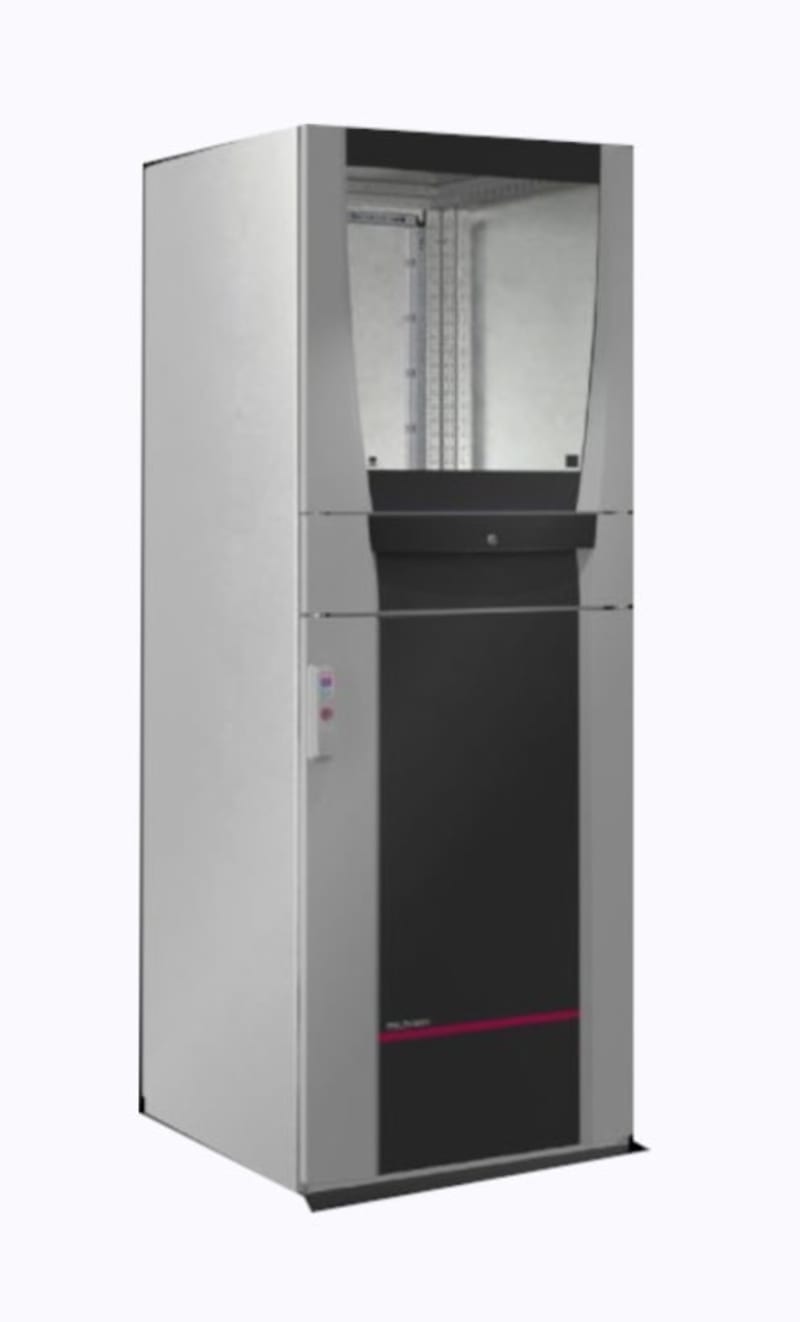

Rittal PC 5386050 Enclosure System 800x1600x636 mm Steel IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal PC 5386.050 enclosure system for industrial PCs, 800 x 1600 x 636 mm (WxHxD), carbon-steel construction with powder-coated finish in RAL 7035. Includes glazed door at the top, keyboard drawer and component shelf. IP55 and NEMA 12 protection; UL 50E Type 1 and Type 12; maximum keyboard 480 x 70 x 260 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5386050
- EAN / GTIN
- 4028177959477
- Sales unit
- pcs
- Model designation
- PC 5386.050
- Product type
- PC enclosure system
- Version
- with glazed door at the top, keyboard drawer and component shelf
- Material
- Housing, door, rear door, mounting compartment, supports: carbon steel; Handles, decorative trim panels: Plastic; Door trim panels: Aluminum; Viewing window: Single-pane safety glass
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint
- General color
- RAL 7035
- Color
- Housing, door, decorative trim panels, supports: RAL 7035; Handle: RAL 7015; Monitor field, door center section: RAL 7015
- Supply includes
- Housing, door, rear door; Base Plates; Glazed door, top; Keyboard drawer; Component shelf
- Dimensions
- Width: 800 mm; Height: 1,600 mm; Depth: 636 mm
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 12
- Type rating according to UL 50E
- Type 1; Type 12
- Max. keyboard dimensions
- 480 x 70 x 260 mm
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 114 kg
- Gross weight
- 115.8 kg
- PCF/VE (cradle-to-gate)
- 448.1 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002502
- ECLASS 8.0
- 27180501
- Width
- 800 mm
- Height
- 1600 mm
- Depth
- 636 mm
- Surface finishing
- Powder coating
- Colour body
- Grey
- RAL-number body
- 7035
- Degree of protection (IP)
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177959477
- SAP 1200596552
- Code 82971985
Product Documentation
