Rittal

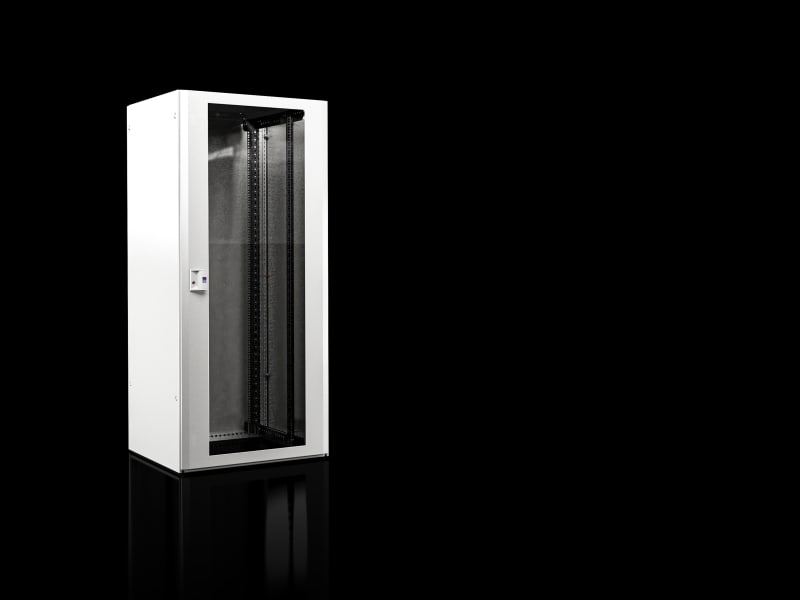

TX CableNet glas 600X2000X800 m side
Part number7888268EAN / GTIN4028177966987HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7888268 TX CableNet - IT-nettverksskap with door with window, klargjort for individuell internal utbygging.
Technical Specifications
- Manufacturer part number (MPN)
- 7888268
- EAN / GTIN
- 4028177966987
- Sales unit
- pcs
- Model designation
- TX 7888.268
- Product type
- Network rack TX CableNet
- Design
- 1st generation with glazed door with side panels
- Material
- Enclosure: Sheet steel; Door: Sheet steel
- 1.2 mm; Side panel
- Sheet steel
- 1.2 mm; 482.6 mm (19") mounting angles
- Sheet steel
- 2 mm; Side panel
- Sheet steel, 1.2 mm
- Surface finish
- Enclosure frame: Dipcoat-primed; Enclosure panels: Dipcoat-primed, powder-coated
- General colour
- RAL 7035
- Colour
- RAL 7035
- Supply includes
- Enclosure with glazed front door and rear door; Enclosure frame with doors and roof plate; Glazed sheet steel front door, 180° hinges; Sheet steel rear door, solid, one-piece
- 130° hinges; Fastener front and rear
- Designer handle with security lock 3524 E; Side panels, lockable, including security lock 3524 E; Roof plate, removable, with waterfall concept for cable entry at the front and rear, with a concealed cut-out for the fan mounting plate; Two 482.6 mm (19") mounting angles, front and rear; IPPC pallet; 482.6 mm (19") mounting angles
- Dimensions
- Width: 600 mm; Height: 2,000 mm; Depth: 800 mm
- Units
- 42 U
- Distance between levels as delivered
- 445 mm
- Design doors
- solid
- Rear door design
- Sheet steel door, one-piece, solid
- Front door design
- Glazed door, one-piece; With 3 mm single-pane safety glass; Door opening angle when baying: max. 105°
- Load capacity
- 5000 N
- Basic material
- Sheet steel
- Net weight
- 115 kg
- Gross weight
- 123 kg
- Customs tariff number
- 94032080
- ETIM 9
- EC002499
- ETIM 8
- EC002499
- ECLASS 8.0
- 27180207
- Approvals
- UL + C-UL (listed)
- Mounting level
- Front and rear
- Type of profile rail
- L-shape
- Number of doors
- 2
- Type of ventilation
- None
- Width
- 600 mm
- Height
- 2000 mm
- Depth
- 800 mm
- Number of height units
- 42
- Max. load capacity
- 500 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- No
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177966987
- SAP 1200596665
- Code 82973212
Product Documentation
Document preview: Rittal 7888268 — Data Sheet (OEM)
More from Rittal
Rittal
Filter Mat 3382/83/84/85
3286500
Rittal
Junction box KX 400X200X80
1518000
Rittal
Rittal VX IT 800x2000x800 mm 42U Pre-Configured Server Rack
5307154
Rittal
PK Box gr.cover 130X130X75
9510000
Rittal

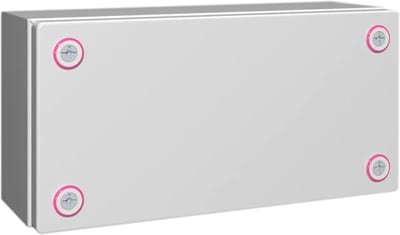

Junction box KX 300X150X120 (1530000)
Rittal
VX Kombi rails for 1000 mm
5302022
Rittal

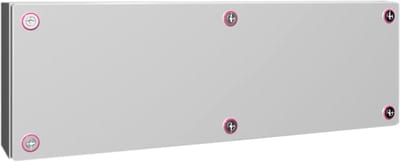

Junction box KX 600X200X120
1506000
Rittal

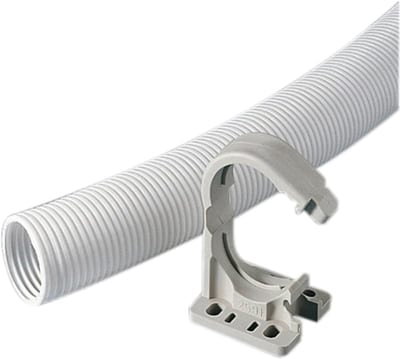

Flexible Cable Conduit 48 mm / roll 25 m
