PK Box kl.cover 180X110X165
Pricing
Request a quote
We reply within 24 hours
Product Description

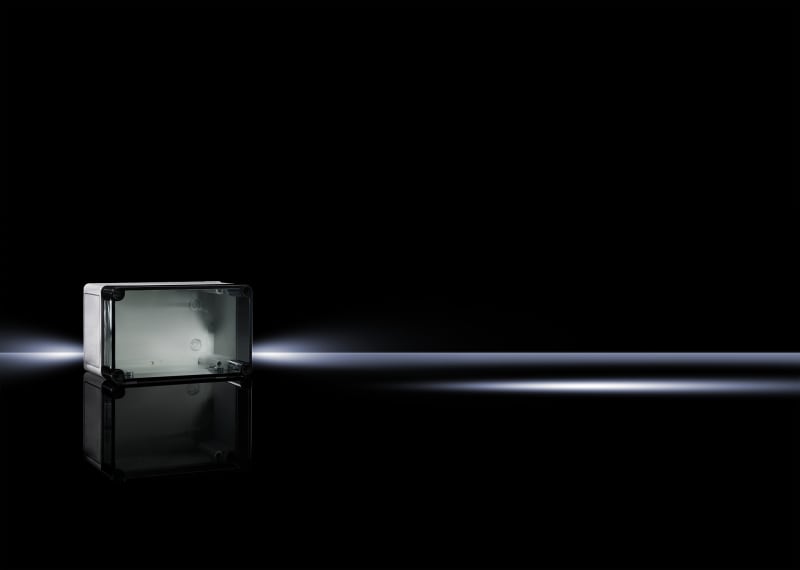

Rittal 9516100 Manufacturer description: PK Polycarbonate enclosure, WHD: 180x110x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover. PK Box kl.cover 180X110X165 Pack of 2 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- 9516100
- EAN / GTIN
- 4028177139596
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- PK 9516.100
- Product type
- PK Polycarbonate Housings
- Version
- PK housing with transparent cover
- Material
- Housing: Fiber-glass reinforced polycarbonate; Cover transparent: Polycarbonate, all-round foamed-in PU seal; Cover screws: Polyamide; Insulating bungs: Polythene
- Color
- RAL 7035
- Supply includes
- Housing with cover; Cover screws; Insulating bungs for wall mounting screws
- Protection category NEMA
- NEMA 4X
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 180 mm; Height: 110 mm; Depth: 165 mm
- Operating temperature range
- -35 °C...80 °C; -31 °F...176 °F
- Base material
- Polycarbonate
- Packaging unit
- 2 pc(s).
- Net weight
- 1.114 kg
- Gross weight
- 1.28 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- C-UL; DNV; UL
- Colour
- Grey
- Width
- 180 mm
- Height
- 110 mm
- Depth
- 165 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 4028177139596
- SAP 1000111085
- Code 8608499
