Rittal

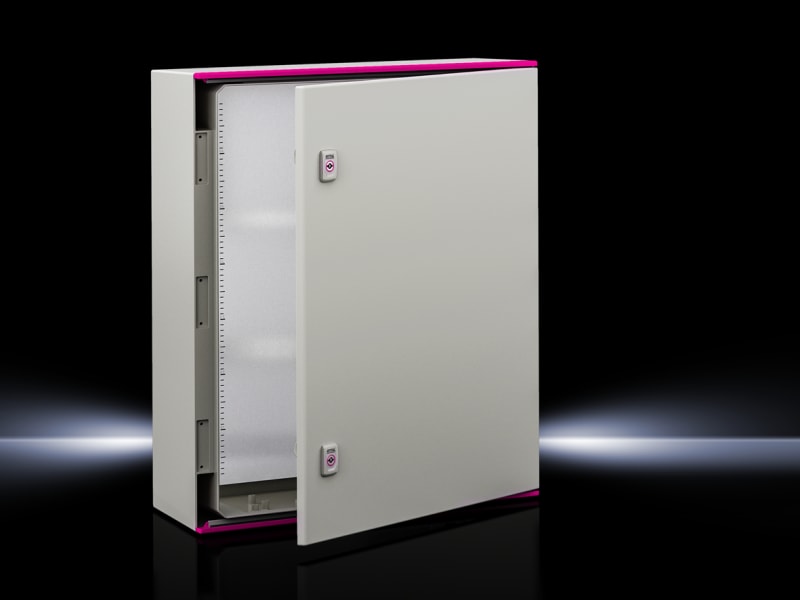

Plastic Enclosure AX 250X350X150
Part number1432000EAN / GTIN4028177006348HS code9403.70
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1432000 Manufacturer description: AX plastic enclosure, WHD: 250x350x150 mm, without viewing window. Plastic Enclosure AX without window, BHD:250x350x150 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1432000
- EAN / GTIN
- 4028177006348
- Sales unit
- pcs
- Model designation
- AX 1432.000
- Product type
- AX Fiberglass-Reinforced Polyester
- Version
- without viewing window
- Material
- Housing and door: Fiberglass-reinforced unsaturated polyester; Door: All-round foamed-in PU seal; Mounting plate: Carbon steel; Fire protection corresponding to UL 94-V0; Halogen-free
- Surface finish
- Housing and door: Dyed plastic with no after-treatment; Mounting panel: Zinc-plated
- Color
- Similar to RAL 7035
- Supply includes
- Housing with hinged door, of all-round solid construction, 3 mm double-bit lock; Door hinged on the right, may be swapped to the left; Mounting panel; Twin seal on the top and bottom edges of the door as integral rain protection strip
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 3RX; NEMA 4; NEMA 4X; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 3RX; Type 4; Type 4X; Type 12
- Protection category
- II (at 1000 V AC)
- IK code
- IK09
- Dimensions
- Width: 250 mm; Height: 350 mm; Depth: 150 mm
- Material thickness – mounting plate
- 2.5 mm
- Dimensions of mounting plate (W x H)
- 155 mm x 275 mm
- Door opening angle
- 130°
- Base material
- Plastic
- Standards
- Meets F1 outdoor rating according to UL 746C
- Mounting tip
- Interior installation screws are required to secure components inside the enclosure; Components in the 25 mm pitch pattern can be secured with the universal bracket, e.g. system chassis
- Packaging unit
- 1 pc(s).
- Net weight
- 4.54 kg
- Gross weight
- 4.74 kg
- Customs tariff number
- 94037000
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Certificates
- pressure load; Negative Certificate; Surface finish; Protection category
- Approvals
- DNV; Lloyds Register; UL + C-UL (listed)
- Colour
- Grey
- Width
- 250 mm
- Height
- 350 mm
- Depth
- 150 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- GRP (Glass fibre reinforced plastic)
- Impact strength
- IK09
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- Yes
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 280 N
- Max. permitted load of the door(s) according to IEC 62208
- 25 N
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Portugal
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 4028177006348
- SAP 1200464317
- Code 82623223
Product Documentation
Document preview: Rittal 1432000 — Data Sheet (OEM)
More from Rittal
Rittal
Plinth VX incl. front/rear panel 100X1000
8660005
Rittal
Floor-Standing Enclosure VX 800X2000X500
8805000
Rittal
Rittal DK 7240.301 7-Way Schuko PDU with Energy Meter 230 V 16 A
7240301
Rittal

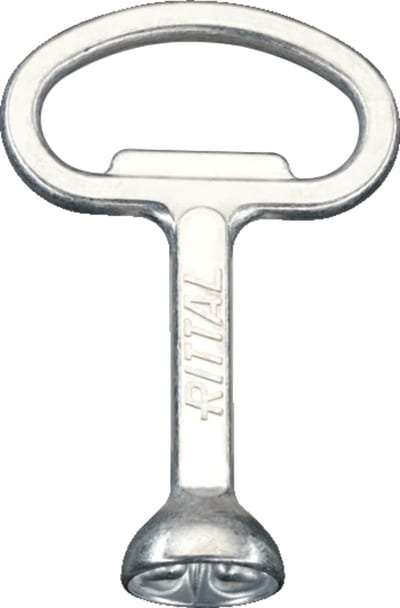

HD wrench for lock-insert
2549600
Rittal

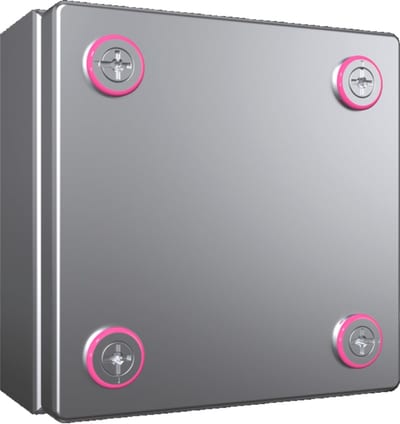

Junction box KX 150X150X80 Rf
1560000
Rittal

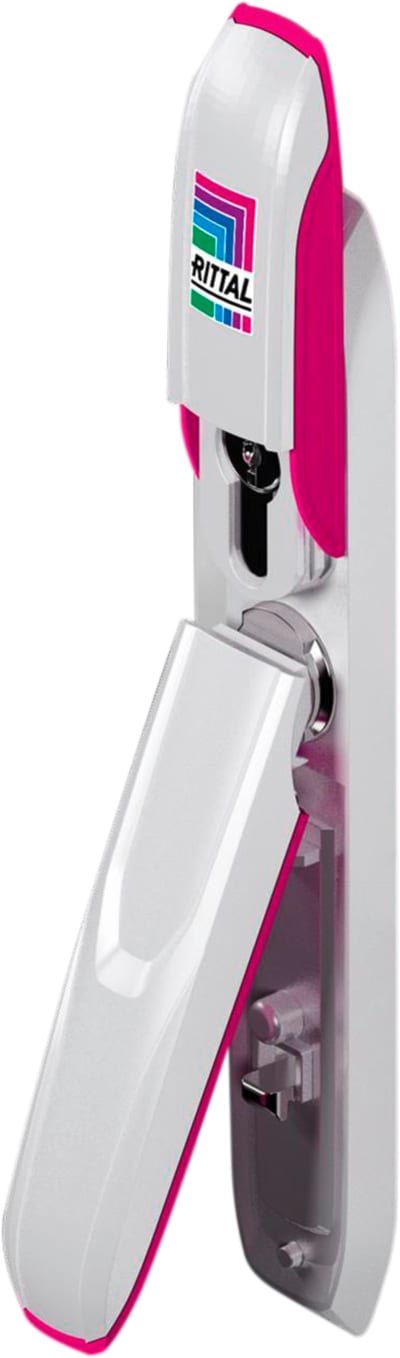

Rittal 2435400 AX Comfort Handle for Padlock
Rittal
Wall-mount cabinet AX IT 7HE 600X380
7641350
Rittal

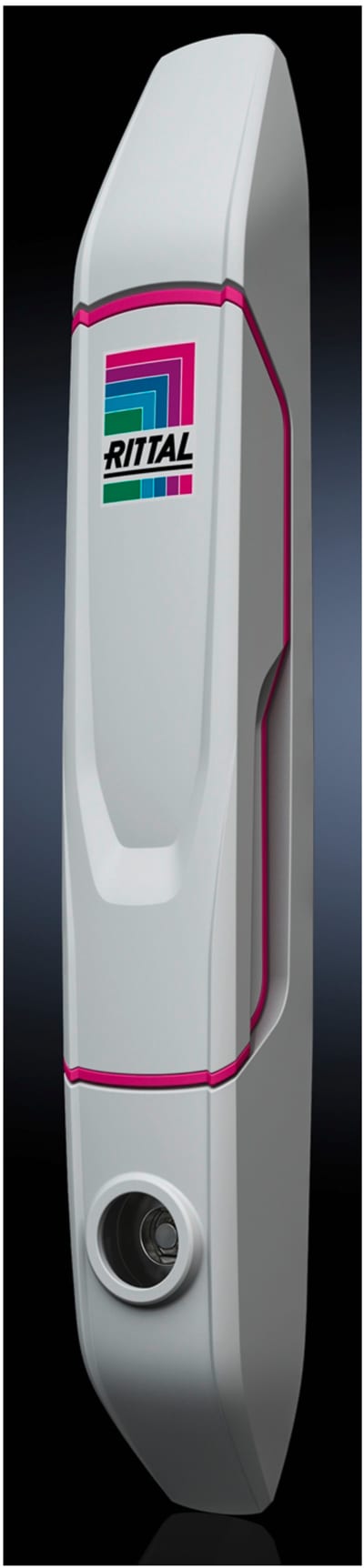

Komfortgrep VX RAL 7035
