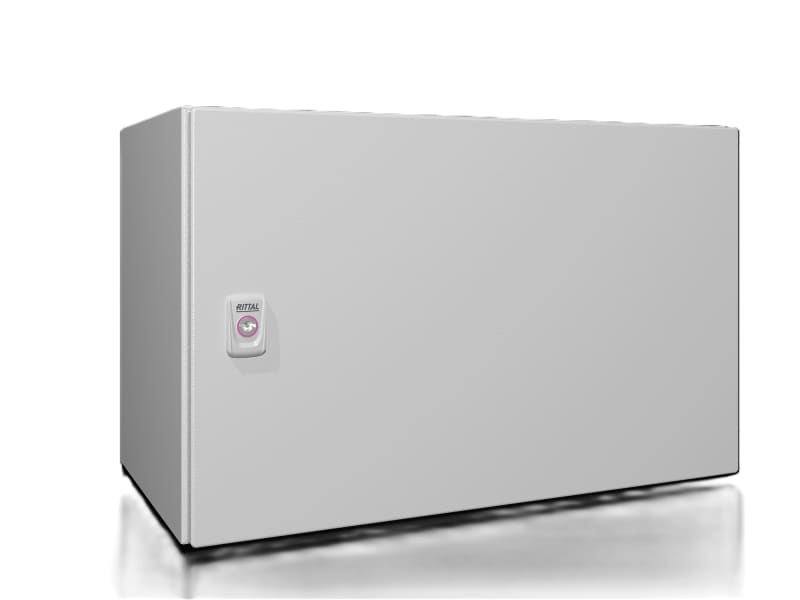

Wall-mount cabinet AX IT 7HE 600X380
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7641350 Manufacturer description: AX IT wall-mounted IT distributor, 7 U, without mounting plate, with; 482.6 mm (19") mounting angles, WHD: 600x380x350 mm (AX; 1339), Pre-asembled IT enclosure with:, with hinged door, of all-round solid construction. Wall-mount cabinet AX IT with 19 "profile rails, varierende depth, 7 U, W×H×D: 600x380x350mm, with brush strip.
Technical Specifications
- Manufacturer part number (MPN)
- 7641350
- EAN / GTIN
- 4028177942394
- Sales unit
- pcs
- Model designation
- AX 7641.350
- Product type
- Wall-mounted housing AX IT
- Version
- Wall-mounted housing IT with 19" (482.6 mm) profile rails, depth-variable
- Material
- Carbon steel
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Interior fittings: zinc-plated
- Color
- RAL 7035
- Supply includes
- Pre-assembled IT enclosure with hinged door, completely closed; Cam lock with 3 mm double-bit insert; Gland plate with brush strip; 19" mounting angle, front, depth-variable at 25 mm intervals, mounted on 4 interior installation rails; Mounting Bracket; C rail, mounted on the rear panel
- Height units
- 7U
- Dimensions
- Width: 600 mm; Height: 380 mm; Depth: 350 mm
- Installation depth
- 278 mm
- Installation height for components
- 7U
- Position door catch
- right, may be swapped to the left
- Installation options
- Pre-assembled mounting bracket, including C-profile rail for cable clamp; Mounting bracket for mounting a central grounding rail; Mounting bracket for mounting a 19" socket strip
- Base material
- Carbon steel
- Lock
- Lock version: Cam with 3 mm double-bit lock insert; No. of locks: 1
- Protection category IP to EN 60 529
- IP 10 (up to IP 66 on request); Up to IP 66 (depending on the selected flange plate)
- Gland plate
- Size: 7; Qty.: 1
- Packaging unit
- 1 pc(s).
- Net weight
- 17.3 kg
- Gross weight
- 17.64 kg
- PCF/VE (cradle-to-gate)
- 67.2 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- None
- Width
- 600 mm
- Height
- 380 mm
- Depth
- 350 mm
- Number of height units
- 8
- Max. load capacity
- 45 kg
- With roof plate
- No
- With earthing
- No
- With front door
- Yes
- With sidewall
- No
- Demountable
- No
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP10
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177942394
- SAP 1200492263
- Code 82584293
