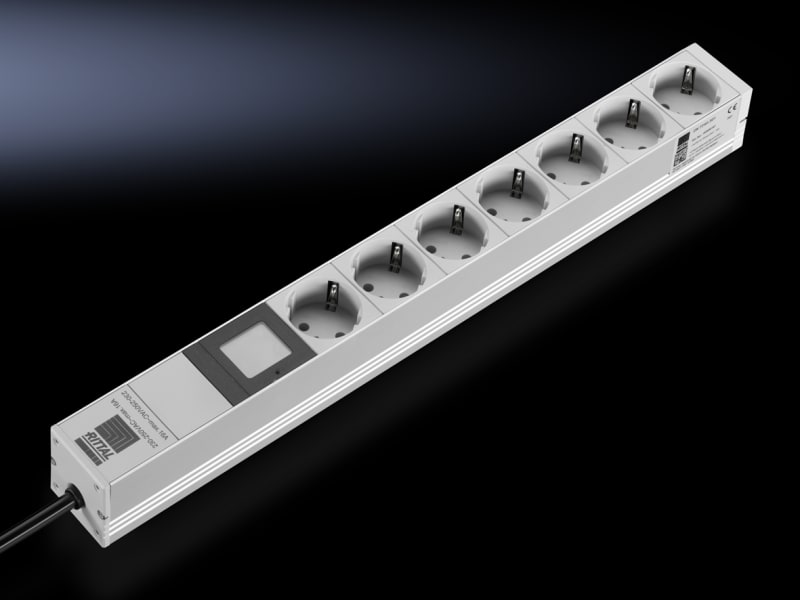

Rittal DK 7240.301 7-Way Schuko PDU with Energy Meter 230 V 16 A
Pricing
Request a quote
We reply within 24 hours
Product Description
The Rittal 7240301 (DK 7240.301) is a 19" 1U socket strip with seven Schuko (CEE 7/3, Type F) outlets, an integrated display and a 3 m H05VV-F3G1.5 connection cable. The built-in meter reports current, voltage, frequency, active power, active energy and phase shift for the connected load. Typical applications include IT racks and industrial enclosures where per-strip energy monitoring is required.
Technical Specifications
- Manufacturer part number (MPN)
- 7240301
- EAN / GTIN
- 4028177709416
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Model designation
- DK 7240.301
- Product type
- Socket strip
- Function principle
- Measurement of current, voltage, frequency, active power, active energy and phase shift
- Material
- Aluminum section, natural anodized; Socket inserts: Polycarbonate
- Supply includes
- Socket strip; 2 mounting bracket; Fasteners; Operating manual; With 3 m connection cable (wire end ferrules)
- Version
- Mit Display
- Outlets
- 7 x D, ground pin (type F, CEE 7/3)
- Dimensions
- Height: 45 mm; Depth: 50 mm; Length: 482.6 mm
- Length of connection cable
- 3m
- Connection cable (type)
- H05VV-F3G1.5 with wire end ferrules
- Mounting dimensions
- 464.1 mm
- Rated operating voltage
- 230 V AC, 50 Hz
- Rated voltage
- 230 V AC, 50 Hz
- Installation options
- Components with a 25 mm pitch pattern; 482.6 mm (19") level; Enclosure frame; IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
- Socket color
- RAL 7035
- Operating temperature range
- 5 °C...45 °C; 41 °F...113 °F
- Relative humidity (non- condensing)
- 10 %...80 %
- Storage temperature range
- -15 °C...60 °C; 5 °F...140 °F
- Packaging unit
- 1 pc(s).
- Net weight
- 0.88 kg
- Gross weight
- 1.08 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC000330
- ECLASS 8.0
- 27142604
- Nominal current
- 16 A
- Colour
- Grey
- Core cross section
- 1.5 mm²
- Halogen free
- No
- Housing shape
- Rectangular
- Surface protection
- Anodised
- Length of power cord
- 3 m
- Residual current circuit breaker (RCCB)
- No
- With on/off switch
- No
- Mains filter
- No
- With cover
- No
- Rotated central insert
- No
- Overvoltage protection
- No
- RAL-number (similar)
- 7035
- Transparent
- No
- Surface finishing
- Matt
- Angle rotated central insert
- 45°
- NEMA designation
- None
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4028177709416
- SAP 1200542491
- Code 82824567
Product Documentation
More from Rittal
Rittal
HD wrench for lock-insert
2549600
Rittal
Junction box KX 150X150X80 Rf
1560000
Rittal
Rittal 2435400 AX Comfort Handle for Padlock
Rittal
Wall-mount cabinet AX IT 7HE 600X380
7641350
Rittal
Komfortgrep VX RAL 7035
8618200
Rittal
Filter Fan 625 m³/h (3243700)
Rittal
Junction box KX 500X300X120 (1509000)
Rittal
Compact enclosure AX 760X760X210
1077000
