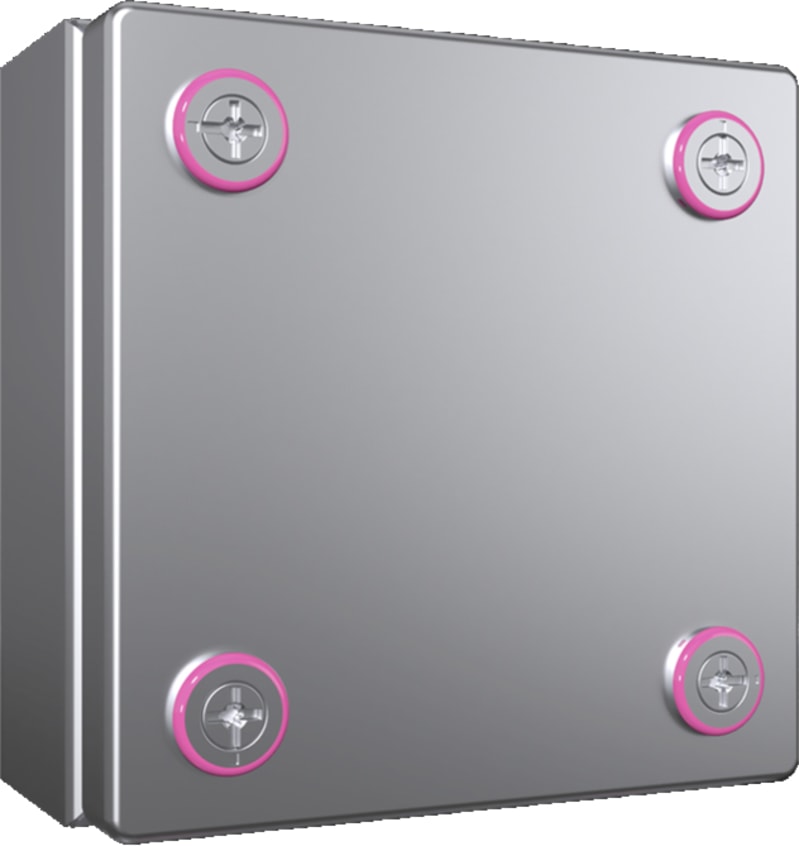

Junction box KX 150X150X80 Rf
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1560000 Manufacturer description: KX Terminal box, WHD: 150x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners. KX Junction box, BHD: 150x150x80 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1560000
- EAN / GTIN
- 4028177919174
- Sales unit
- pcs
- Model designation
- KX 1560.000
- Product type
- KX terminal box
- Material
- Housing: Stainless steel 1.4301 (AISI 304); Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
- Surface finish
- Housing and cover: Brushed, grain 180
- Supply includes
- Housing with cover; Quick-release fasteners including plastic bushings
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 3RX; NEMA 4; NEMA 4X; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 3RX; Type 4; Type 4X; Type 12
- Dimensions
- Width: 150 mm; Height: 150 mm; Depth: 80 mm
- Material thickness - cover
- 1.25 mm
- Material thickness - enclosure
- 1.5 mm
- Lock
- No. of locks: 4
- Base material
- Stainless steel 1.4301 (AISI 304)
- Packaging unit
- 1 pc(s).
- Net weight
- 1.12 kg
- Gross weight
- 1.323 kg
- PCF/VE (cradle-to-gate)
- 5.24
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- Bureau Veritas; DNV; Lloyds Register; UL + C-UL (listed)
- Length
- 150 mm
- Width
- 150 mm
- Depth
- 80 mm
- Material plate thickness cabinet
- 1.25 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Type of inlet
- Gland nut
- Halogen free
- No
- Surface protection
- Untreated
- Degree of protection (IP)
- IP66
- With cover
- No
- Cover attachment
- Snapped on
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 2500 V
- Circuit integrity
- None
- Impact strength
- IK08
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177919174
- SAP 1200380028
- Code 82388860
Product Documentation
