Rittal
App.adapter CB 400A 690V o
Part number9345720EAN / GTIN4028177680029HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

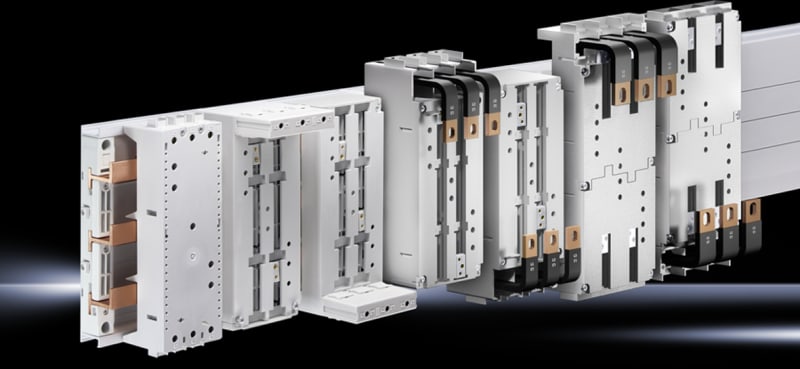

Rittal 9345720 Manufacturer description: SV Circuit-breaker component adaptor, 400 A, 690 V, 3-pole, cable outlet top, with connection straps. Device Adapter CB 400A 690V cable output above.
Technical Specifications
- Manufacturer part number (MPN)
- 9345720
- EAN / GTIN
- 4028177680029
- HS code
- 8544.42
- Sales unit
- pcs
- Model designation
- SV 9345.720
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Supply includes
- Connection straps; Sliding Blocks
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 400 A, DIVQ/7
- Cable outlet
- Top
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 140 mm; Height: 345 mm
- Suitable for busbars
- Height: 5, 10 mm
- To fit manufacturer (model)
- Eaton (NZM3, NZM3 UL/400 A); GE (FG400); Mitsubishi (NF400-SEW/HEW/REW); Schneider Electric (NS(X)400, NSJ400); Schrack (MC3); Siemens (VL400, VL400X UL, VL400 UL, 3VA23, 3VA63); Terasaki (E400, S400, H400, L400)
- Packaging unit
- 1 pc(s).
- Net weight
- 2.88 kg
- Gross weight
- 2.98 kg
- Copper weight (kg per piece)
- 1.533
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177680029
- SAP 1000772954
- Code 81376251
Product Documentation
Document preview: Rittal 9345720 — Data Sheet (OEM)
More from Rittal
Rittal

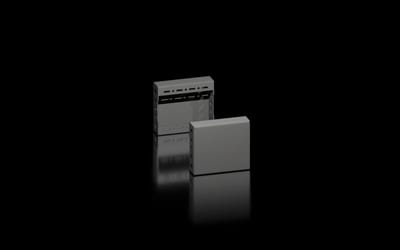

Base panels VX on the side 100X300
8660030
Rittal

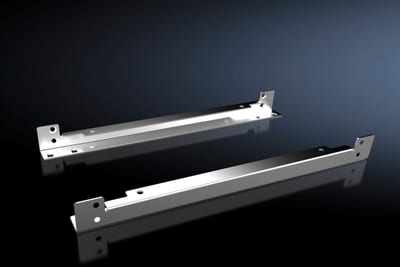

Gliderail f mpl VX 600 2 pcs
8617400
Rittal

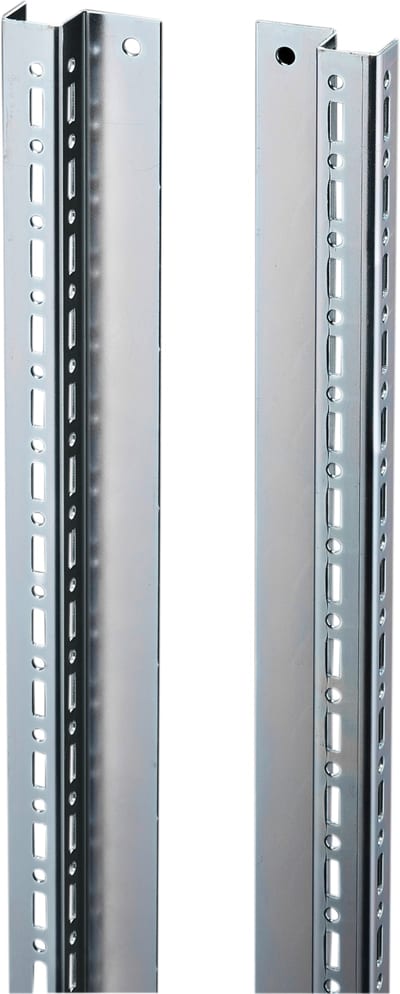

Rails f inner utbuilding. CM/CL (5001054)
Rittal
App.adapter CB 630A 690V o
9345700
Rittal

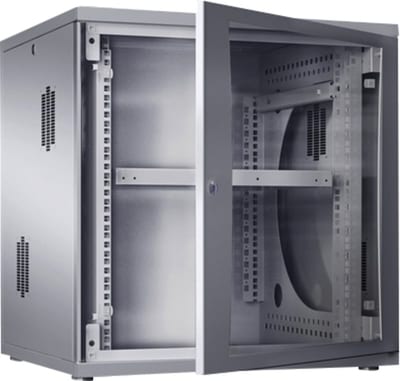

FlatBox 12HE, 400mm deep
