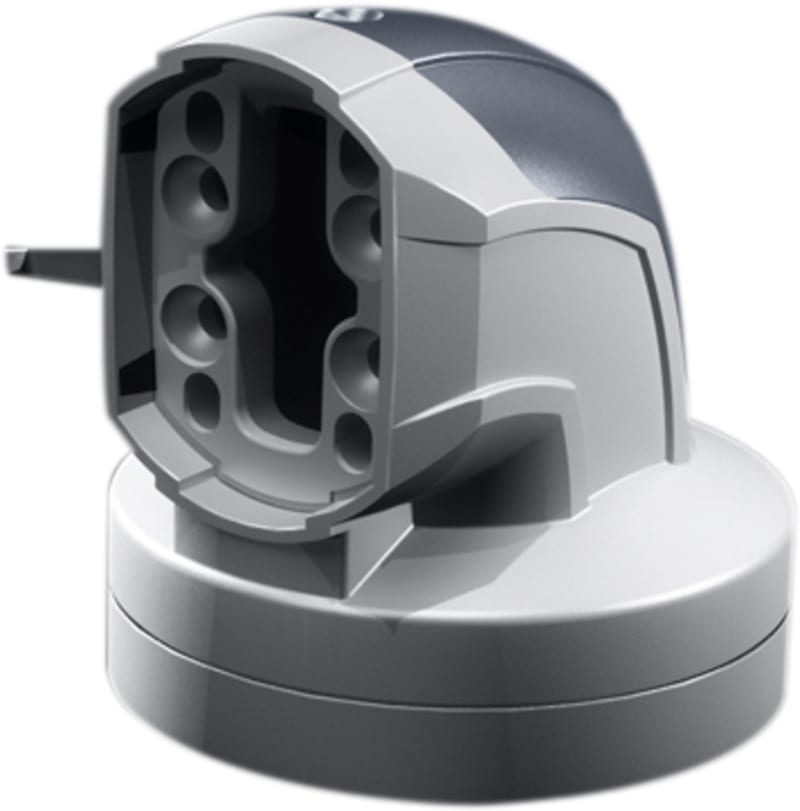

Rittal 6206380 CP 60 Angle Coupling 90° Swivelling Ø130 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 6206380 CP angle coupling, 90°, CP 60, for support arm connection at Ø130 mm. The rotating/tilting design offers a swivel range of approximately 310°, lockable via clamping levers and restrictable through supplied grub screws. Cast aluminium/die-cast zinc body in RAL 7035 with a plastic cover in RAL 7024.
Technical Specifications
- Manufacturer part number (MPN)
- 6206380
- EAN / GTIN
- 4028177684393
- Sales unit
- pcs
- Model designation
- CP 6206.380
- Product type
- Angle coupling 90° CP 60
- Material
- Angle coupling: Cast aluminum/die-cast zinc; Cover: Plastic
- Color
- Angle coupling: RAL 7035; Cover: RAL 7024
- Supply includes
- Seals; Grub (set) screws; Adjusting screws; Self-tapping screws for support section attachment
- Rotating/tilting
- Yes
- Rotation angle/swivel area
- Approximately 310°, lockable via clamping levers; The range of rotation can be limited by inserting the grub (set) screws provided
- Packaging unit
- 1 pc(s).
- Net weight
- 1.8 kg
- Gross weight
- 1.953 kg
- Customs tariff number
- 79070000
- ETIM 9
- EC000882
- ECLASS 8.0
- 27400556
- Model
- 90°
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 7907.00
Cross References
- EAN 4028177684393
- SAP 1000364781
- Code 8167672
