PK Box gr.cover 180X94X57
Pricing
Request a quote
We reply within 24 hours
Product Description

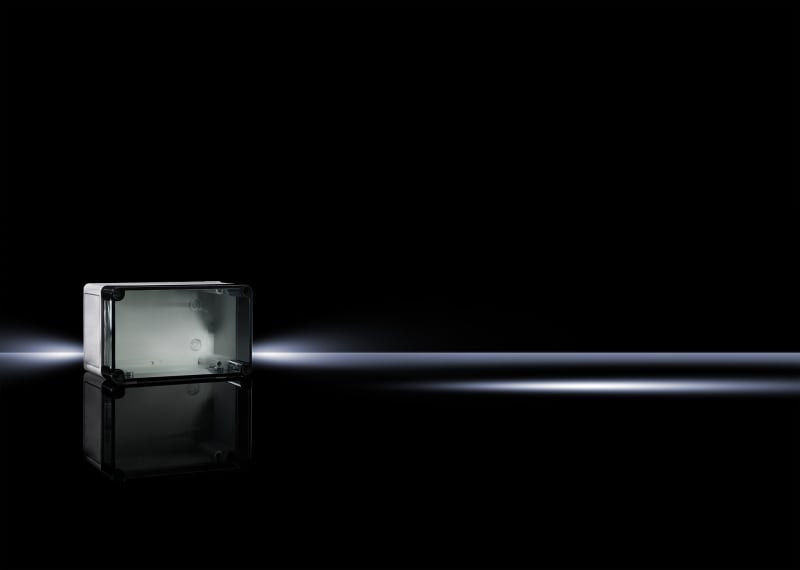

Rittal 9512000 Manufacturer description: PK Polycarbonate enclosure, WHD: 180x94x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover. PK Box gr.cover 180X94X57 Pack of 2 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- 9512000
- EAN / GTIN
- 4028177139411
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- PK 9512.000
- Product type
- PK Polycarbonate Housings
- Version
- PK housing with closed cover
- Material
- Housing: Fiber-glass reinforced polycarbonate; Cover gray: Fiberglass-reinforced polycarbonate, all-round foamed; PU seal; Cover screws: Polyamide; Insulating bungs: Polythene
- Color
- RAL 7035
- Supply includes
- Housing with cover; Cover screws; Insulating bungs for wall mounting screws
- Protection category NEMA
- NEMA 4X
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 180 mm; Height: 94 mm; Depth: 57 mm
- Operating temperature range
- -35 °C...80 °C; -31 °F...176 °F
- Base material
- Polycarbonate
- Packaging unit
- 2 pc(s).
- Net weight
- 0.56 kg
- Gross weight
- 0.62 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- C-UL; DNV; UL; UL + C-UL (listed)
- Colour
- Grey
- Width
- 180 mm
- Height
- 94 mm
- Depth
- 57 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 4028177139411
- SAP 1000111082
- Code 81234268
Product Documentation
More from Rittal
Rittal
VX IT std 600X2000X1000 vent
5308113
Rittal
Rittal 1305600 HD Compact Enclosure Stainless Steel 390x550x210 mm
Rittal
Rittal 2580122 AX Sealing Insert for 22 mm Cable Gland Modular
Rittal
Universal Bracket for AX Plastic Enclosure
1485200
Rittal
VX IT Air control plate 800X2200 dyn
5302007
Rittal
VX IT Equipotential bondingevningssett Std
5302027
Rittal
Cable Gland M32X1,5 5/frp
2411841
Rittal
Mounting plate KX 175X385
1564800
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 9512000?
- 9512000 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 9512000.
- What is the HS code for 9512000?
- The customs tariff (HS) code for 9512000 is 9403.70.
- Who manufactures 9512000?
- 9512000 is a Rittal product in the Enclosures range.
- Is a datasheet available for 9512000?
- Yes — the 9512000 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 9512000?
- The minimum order quantity is 1.
- Is 9512000 available?
- Yes — 9512000 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
