Plastic Flange AX size 2 module
Pricing
Request a quote
We reply within 24 hours
Product Description

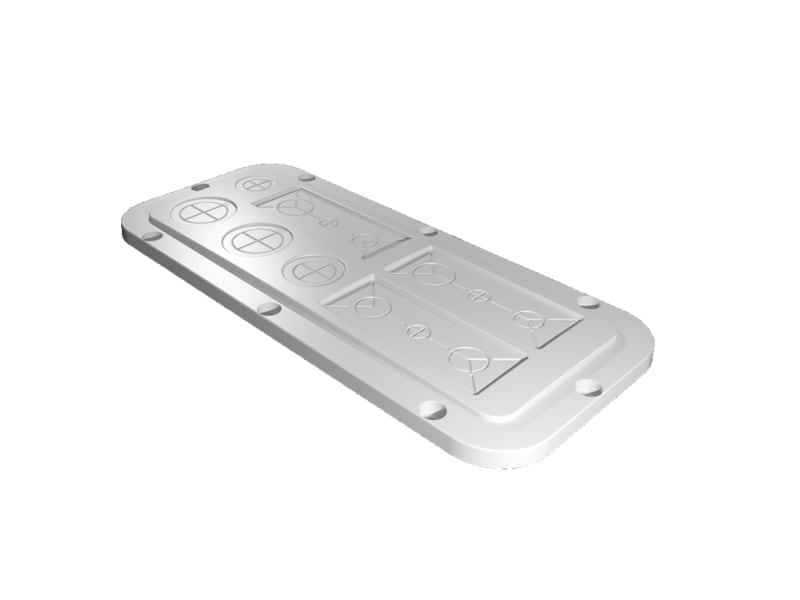

Rittal 2562200 Manufacturer description: SZ Plastic gland plates, for AX, for cable entry, modular, pre-punched, WD: 339x149 mm, for gland plates size 2. SZ Flange Plates in plastic, for AX, for cable gland, modular.
Technical Specifications
- Manufacturer part number (MPN)
- 2562200 EAN / GTIN: 4028177938403 HS code: 8544.42 Sales unit: pcs Package quantity: 22 pcs Model designation: SZ 2562.200 material: Plastic to UL 94-V0 Color: RAL 7035 Number of rectangular cutouts information: 1x rectangular cutout takes 10 sealing inserts, small No. of metric knockouts: 3 x M12; 2 x M16; 3 x M20; 3 x M25; 2 x M32 Dimensions: Width: 339 mm; Depth: 149 mm Gland plate: Size: 2 Operating temperature range: -40 °C...80 °C; -40 °F...176 °F Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Packaging unit: 1 pc(s). Net weight: 0.3 kg Gross weight: 0.332 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177938403
- SAP 1200380127
- Code 82389180
Product Documentation
