Rittal

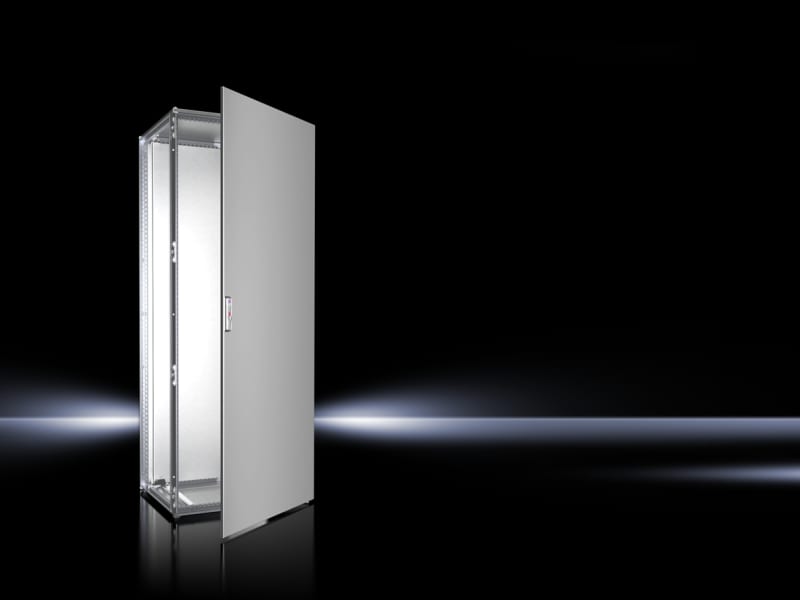

Floor-Standing Enclosure VX rf 800X2000X600
Part number8450000EAN / GTIN4028177920194HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8450000 Floor-Standing Enclosure VX stainless with mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- 8450000
- EAN / GTIN
- 4028177920194
- Sales unit
- pcs
- Model designation
- VX 8450.000
- Material
- Enclosure frame: Stainless steel 1.4301 (AISI 304)
- 1.5 mm; Roof
- Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed; Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed; Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed; Gland plates: Stainless steel 1.4301 (AISI 304)
- 1.5 mm; Mounting plate
- Sheet steel, 3.0 mm
- Surface finish
- Enclosure frame and gland plates: Uncoated; Door, roof and rear panel: Exterior brushed, grain size 400; Mounting plate: Zinc-plated
- Supply includes
- Enclosure frame; Door(s); Door hinged on the right, may be swapped to the left; Roof plate; Gland plates; Rear panel; Mounting plate; Lock: 3 mm double-bit; 2 punched rails 18 x 39 mm
- Dimensions
- Width: 800 mm; Height: 2,000 mm; Depth: 600 mm
- Dimensions mounting plate (W x H)
- 699 mm x 1,896 mm
- Protection category to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 1; NEMA 12
- Type rating to UL 50E
- Type 1; Type 12
- IK Code
- IK10
- Basic material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 121.9 kg
- Gross weight
- 126.4 kg
- PCF per pack (cradle-to-gate)
- 386.7
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Stainless steel
- Width
- 800 mm
- Height
- 2000 mm
- Depth
- 600 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 900 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- Yes
- Intermediate mounting
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177920194
- SAP 1200227674
- Code 82171674
Product Documentation
