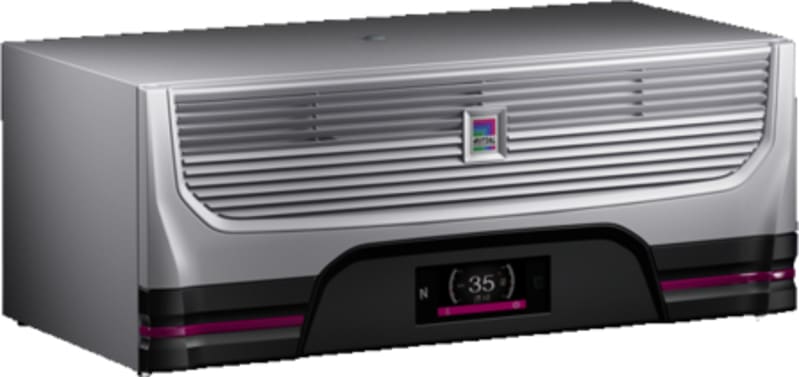

Rittal SK Roof-Mounted Blue e+ Cooling Unit 1.3 kW

Rittal 3185730 is a Blue e+ roof-mounted cooling unit rated 1.3 kW (4436 BTU/h) with a carbon steel body finished in RAL 7035. Supplies operate on 110-240 V single phase or 380-480 V three phase, 50/60 Hz. External dimensions 700 x 308 x 560 mm, IP54 in both circuits with R-513A refrigerant.

Manufacturer part number (MPN)

3185730 EAN / GTIN: 4028177927155 Sales unit: pcs Model designation: SK 3185.730 Product type: Roof-mounted Blue e+ cooling unit Version: roof-mounted material: Carbon steel Color: RAL 7035 Supply includes: Roof-mounted Blue e+ cooling unit; Pleated filter; Wired ready for connection; Assembly components; Condensate hose (3 m) Options: For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300.; Increase machine availability and process safety by remote monitoring of device data, condition, and system messages. Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz; 380 V - 480 V, 3~, 50 Hz/60 Hz Rated output: 0.75 kW Air throughput (unimpeded air flow): External circuit: 750 m³/h; Internal circuit: 700 m³/h; External circuit: 441.4 cfm; Internal circuit: 412 cfm Energy efficiency ratio (EER) 50/60: Refrigeration factor L35 L35 (EER) 50 Hz: 2.04 Hz L35 L35: Refrigeration factor L35 L35 (EER) 60 Hz: 2.04 Seasonal energy efficiency ratio (SEER) 50/60 Hz: 5.3 Dimensions: Width: 700 mm; Height: 308 mm; Depth: 560 mm Protection category IP to EN 60 529: External circuit IP 54 with pleated filter; Internal circuit IP 54 with pleated filter Refrigerant/cooling medium: Refrigerant: R-513A; Quantity: 0.6 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.38 t; Refrigerant: R-513A; Quantity: 1.3 lb. Type of connection (electrical): Plug-in terminal strip Temperature control: e+ controller (factory setting +35 °C) Operating temperature range: -20 °C...55 °C; -4 °F...131 °F Storage temperature range: -40 °C...70 °C; -40 °F...158 °F Operating temperature range of refrigerant circuit (active): 3 °C...55 °C Operating temperature range of heat pipe: -20 °C...45 °C Setting range: 20 °C...50 °C; 68 °F...122 °F Rated power Pel: Rated power L35 L35/50 Hz: 0.67 kW; Rated power L35 L35/60 Hz: 0.67 kW; Rated power L35 L50/50 Hz: 0.57 kW; Rated power L35 L50/60 Hz: 0.57 kW Permissible operating pressure (p. max.): 24 bar; 348.1 PSI Packaging unit: 1 pc(s). Net weight: 38 kg Gross weight: 56.25 kg PCF/VE (cradle-to-gate): 625.52 Customs tariff number: 84158200 ETIM 9: EC000855 ETIM 8: EC000855 ECLASS 8.0: 27180704 Approvals: TÜV-certified safety; UR + C-UR (recognized) Width: 700 mm Height: 308 mm Depth: 560 mm Voltage type: AC With heating function: No With temperature control: Yes Function master/slave: Yes Total cooling capacity according to EN 14511 at 35/35 °C: 1420 W Speed-regulated: Yes Country of origin: Italy

HS Code

8415.82

• EAN 4028177927155
• SAP 1200321457
• Code 82303790
