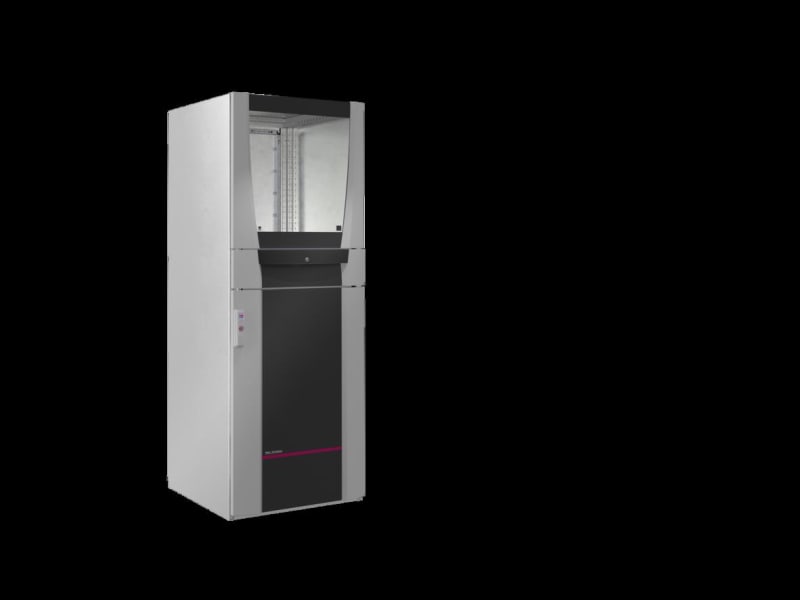

Rittal PC Enclosure System SE 600x1600x636 mm Keyboard Drawer
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5366050 is a PC enclosure system measuring 600 x 1600 x 636 mm in carbon steel, with a glazed door at the top, folding keyboard drawer and component shelf. Housing and door finished in RAL 7035 textured paint with handles in RAL 7015. Protection is IP55 / NEMA 12. Net weight 93.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- 5366050
- EAN / GTIN
- 4028177959422
- Sales unit
- pcs
- Model designation
- PC 5366.050
- Product type
- PC enclosure system
- Version
- with glazed door at the top, keyboard drawer and component shelf
- Material
- Housing, door, rear door, mounting compartment, supports: carbon steel; Handles, decorative trim panels: Plastic; Door trim panels: Aluminum; Viewing window: Single-pane safety glass
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint
- General color
- RAL 7035
- Color
- Housing, door, decorative trim panels, supports: RAL 7035; Handle: RAL 7015; Monitor field, door center section: RAL 7015
- Supply includes
- Housing, door, rear door; Base Plates; Glazed door, top; Keyboard drawer; Component shelf
- Dimensions
- Width: 600 mm; Height: 1,600 mm; Depth: 636 mm
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 12
- Type rating according to UL 50E
- Type 1; Type 12
- Max. keyboard dimensions
- 480 x 70 x 260 mm
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 93.5 kg
- Gross weight
- 95.8 kg
- PCF/VE (cradle-to-gate)
- 386.3 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002502
- ECLASS 8.0
- 27180501
- Width
- 600 mm
- Height
- 1600 mm
- Depth
- 636 mm
- Surface finishing
- Powder coating
- Colour body
- Grey
- RAL-number body
- 7035
- Degree of protection (IP)
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177959422
- SAP 1200596547
- Code 82972163
Product Documentation
More from Rittal
Rittal
Segma Channel 25X40 (PW21154)
Rittal
HD junction box 150X150X80
1670600
Rittal
Condensate Gland (2459000)
Rittal
Rittal SV OM Support 45x170 mm PinBlock without Contact System
9340260
Rittal
Rittal PDU Metered 16A/1P IEC-C20 6xC13 19"
7979202
Rittal
Plastic Enclosure AX m. window 400X400X200
1448000
Rittal
PK BOX KL.COVER 180X110X111 (2 pcs)
9515100
Rittal
Shielding for dekkprof. 5 pcs
9340220
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5366050?
- 5366050 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 5366050.
- What is the HS code for 5366050?
- The customs tariff (HS) code for 5366050 is 9403.20.
- Who manufactures 5366050?
- 5366050 is a Rittal product in the Enclosures range.
- Is a datasheet available for 5366050?
- Yes — the 5366050 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5366050?
- The minimum order quantity is 1.
- Is 5366050 available?
- Yes — 5366050 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
