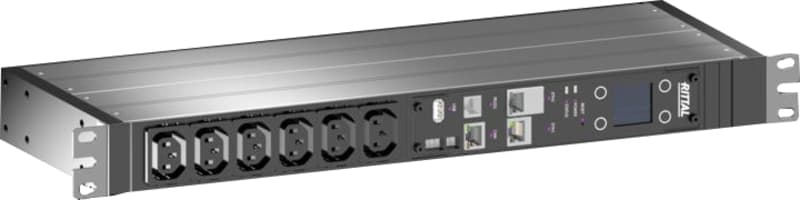

Rittal PDU Metered 16A/1P IEC-C20 6xC13 19"

Rittal 7979202 DK PDU metered, a compact 19-inch basic power distribution unit with per-phase energy measurement, network interface and TFT display. Dimensions 450 x 44 x 144 mm with six IEC 60320 C13 outlets and an IEC C20 inlet. Redundant across all phases, black anodised aluminium section with plastic slots. Suitable for high-end IT-rack power distribution.

Manufacturer part number (MPN)

7979202

EAN / GTIN

4028177947603

Sales unit

pcs

Model designation

DK 7979.202

Product type

PDU metered

Design

482.6 mm (19") version

Technical specifications

Display/controller unit in the PDU enclosure rotatable through 180° and replaceable; Integral, fully-redundant power pack, power supply from all phases; Error-tolerant PDU power supply redundant across all phases; Voltage V, current A, frequency Hz; Active power, active energy, apparent power, apparent energy; Power factor (cosPhi) and phase angle; Zero conductor current measurement/load imbalance detection; Fuse monitoring for PDUs with integral fuse; Bright TFT display, 128 x 128 pixels (RGB) with back-lighting and energy-saving mode to display output data and basic PDU configuration; Position sensors for display rotation and correct PDU representation on the website; Power LED to indicate voltage

Material

Aluminium section, black anodised; Slots: Plastic

Supply includes

Assembly parts; No connection cable, to be provided by the customer.

Options

CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors

Dimensions

Height: 44 mm; Depth: 144 mm; Length: 450 mm

No. of sockets and type

6 x C13

Rated operating voltage

230 V (AC)

Power consumption

3.7 kW

Infeeds

Qty.: 1; Phases per infeed: 1~

Type of electrical connection

IEC C20

Directives

EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU

Standards

EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21

Protocols

Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP; TCP/IP v4 & v6, DHCP, DNS; SNMP v1, v2c & v3, Modbus/TCP, OPC-UA; MIB for linking into 3rd party DCIM software; FTP/SFTP (update/file transfer)

Operating temperature range

5 °C...50 °C

Ambient humidity (non- condensing)

10...95 %

Storage temperature range

-20 °C...70 °C

To fit

Enclosure type: VX IT enclosure frame: ≥ 800 mm; Enclosure type: VX IT 19" mounting angles: ≥ 800 mm

Net weight

2 kg

Gross weight

2.54 kg

Customs tariff number

85366990

ETIM 9

EC002762

ETIM 8

EC002762

ECLASS 8.0

27142604

Explanations Tender text

Declaration of conformity

Approvals

Cyber Security Certificate; TÜV-tested safety

Mounting direction

Horizontal/vertical

Electrical connection

Connection cable with plug

Type of electric connection

C20

Number of phases

1

Cable length

3 m

Number of C13 socket outlets

6

Number of height units

1

Length

450 mm

Width

44 mm

Height

44 mm

Depth

144 mm

Supply voltage

230 V

Mains filter

No

Switchable

No

With meter

Yes

Control function

Yes

SNMP

Yes

With display

Yes

Evaluation

Local

With LED indication

No

With fuse

No

Ampere meter

Yes

Temperature measurement

Yes

With mounting material

Yes

Colour

Black

Country of origin

Germany

HS Code

8536.69

• EAN 4028177947603
• SAP 1200542564
• Code 82801740
