Ansl adapt 600A 60/5-10
Pricing
Request a quote
We reply within 24 hours
Product Description

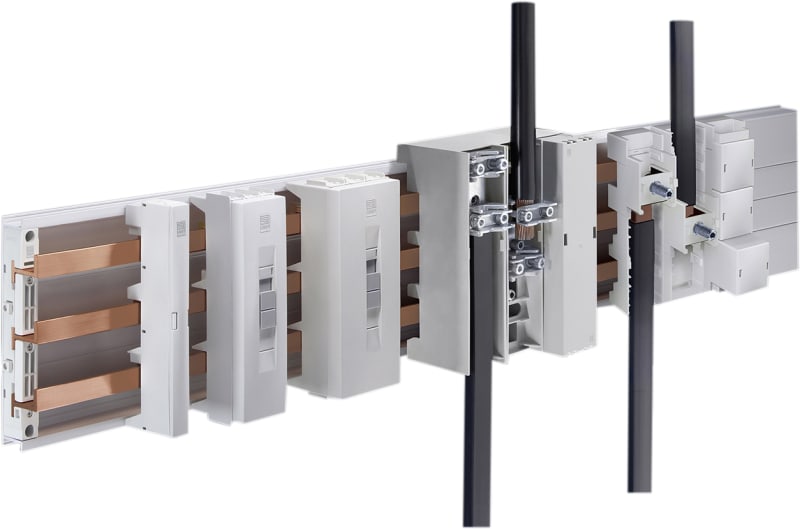

Rittal 3439010 Manufacturer description: SV Connection adaptor, 600 A, 690 V, 3-pole, cable outet top/ bottom, round conductor connection 35-240 mm², clamping area; WH: 24x21 mm. For connection round conductors or lam. copper busbars. For rails m. 60 mm senter-for-senter spacer.
Technical Specifications
- Manufacturer part number (MPN)
- 3439010
- EAN / GTIN
- 4028177236295
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- SV 3439.010
- Product type
- Connection Adapters
- Material
- Cover: ABS; Chassis: Fiberglass-reinforced, thermoplastic polyester (PBT); Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 3~
- Cable outlet
- Top/bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 180 mm; Height: 247 mm
- Suitable for busbars
- Height: 5, 10 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 4.36 kg
- Gross weight
- 4.635 kg
- Copper weight (kg per piece)
- 0.732
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ETIM 8
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS
- Mounting rail armament
- None
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 180 mm
- Rail width
- 24 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177236295
- SAP 1000324989
- Code 8724723
Product Documentation
More from Rittal
Rittal

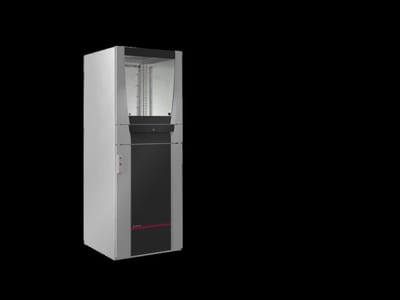

Rittal PC Enclosure System SE 600x1600x636 mm Keyboard Drawer
5366050
Rittal
Segma Channel 25X40 (PW21154)
Rittal

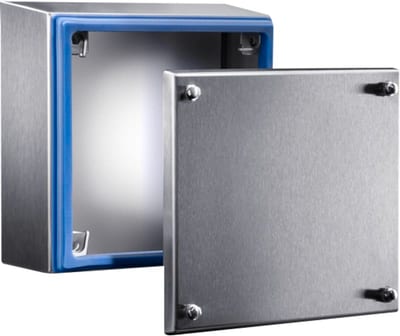

HD junction box 150X150X80
1670600
Rittal
Condensate Gland (2459000)
Rittal
Rittal SV OM Support 45x170 mm PinBlock without Contact System
9340260
Rittal
Rittal PDU Metered 16A/1P IEC-C20 6xC13 19"
7979202
Rittal

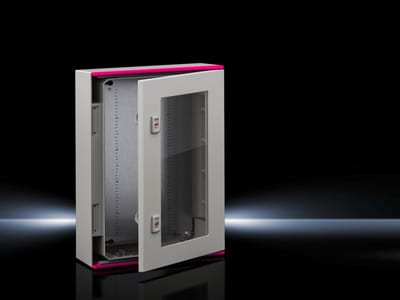

Plastic Enclosure AX m. window 400X400X200
1448000
Rittal

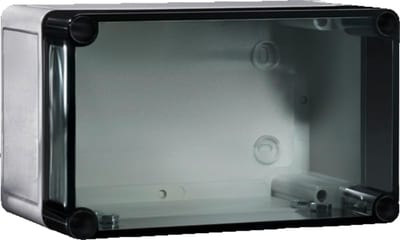

PK BOX KL.COVER 180X110X111 (2 pcs)
