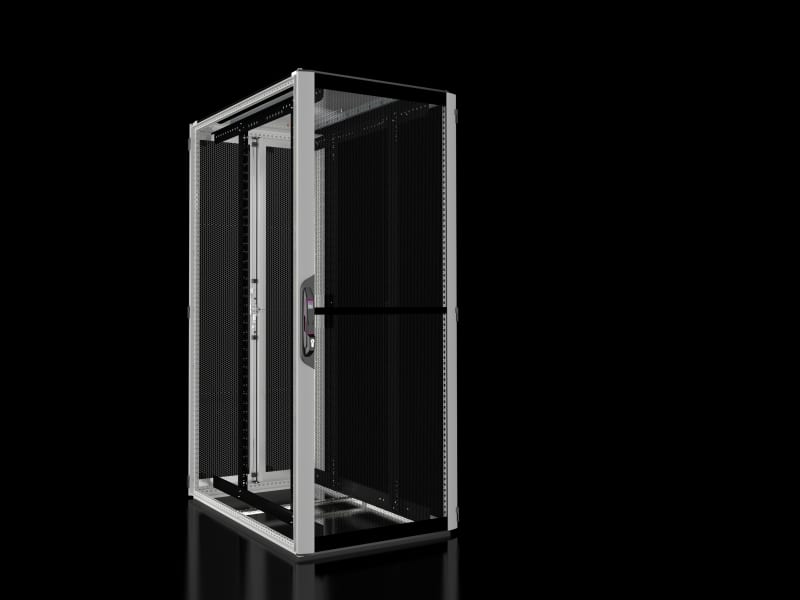

VX IT std 800X2000X1200 vent

Rittal 5311116 Manufacturer description: VX IT, 19" mounting angles, standard, front and rear, vented, WHD:; 800 x 2000 x 1200 mm, 42 U. VX IT, ventilated, 19 "mounting angle standard, RAL7035, WHD 800x2000x1200mm, 42U.

Manufacturer part number (MPN)

5311116

EAN / GTIN

4028177945210

Sales unit

pcs

Model designation

VX 5311.116

Product type

VX IT network/server enclosure

Version

Vented; Standard with 19" mounting rails

Material

Carbon steel; Aluminum; Front door: aluminum

1.25 mm; Back door

carbon steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior: Spray-finished; Rear door and roof: dipcoat-primed, powder-coated; Front door: Aluminum, anodized/spray-finished

General color

RAL 7035

Color

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver colored and horizontal sections, RAL 9005; Interior installation, vent grille at the front: RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX cabinet frame with doors and roof plate; Aluminum carbon steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges; Carbon steel door at the rear, vented (free area in perforated carbon steel part approx. 85 %); Lock front and rear: Comfort handle for semi-cylinders and security lock 3524 E; Profile rails, 482.6 mm (19"); Spacers, height 50 mm, for raising the cover plate above the fan breakout in the roof panel, for passive ventilation (enclosed) Not required for variants without cutout.; 12 x 19” fasteners 1 U, contacting (supplied); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet; Roof plate, multi-piece, with side depth-adjustable cable entry on both sides, prepared for fan mounting plate; Carbon steel door, rear, vertically divided, 180° hinges

Dimensions

Width: 800 mm; Height: 2,000 mm; Depth: 1,200 mm

Height units

42 U

Distance between levels as delivered

720 mm

Roof version

multi-piece, with side depth-adjustable cable entry on both sides, prepared for fan mounting plate

Design of rear door

Carbon steel door, vertically divided, 180° hinges

Design for front door

Aluminum carbon steel door, vented, one-piece, 180° hinges

Versions of profile rails

19" standard profile rails in VX IT

Floor version

open

Design of position of profile rails

19” level, front and rear

Load capacity

15,000 N

Base material

Carbon steel

Packaging unit

1 pc(s).

Net weight

79 kg

Gross weight

101 kg

PCF/VE (cradle-to-gate)

248.8 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ETIM 8

EC002499

ECLASS 8.0

27180207

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

800 mm

Height

2000 mm

Depth

1200 mm

Number of height units

42

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

Colour

Grey

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20
