Rittal

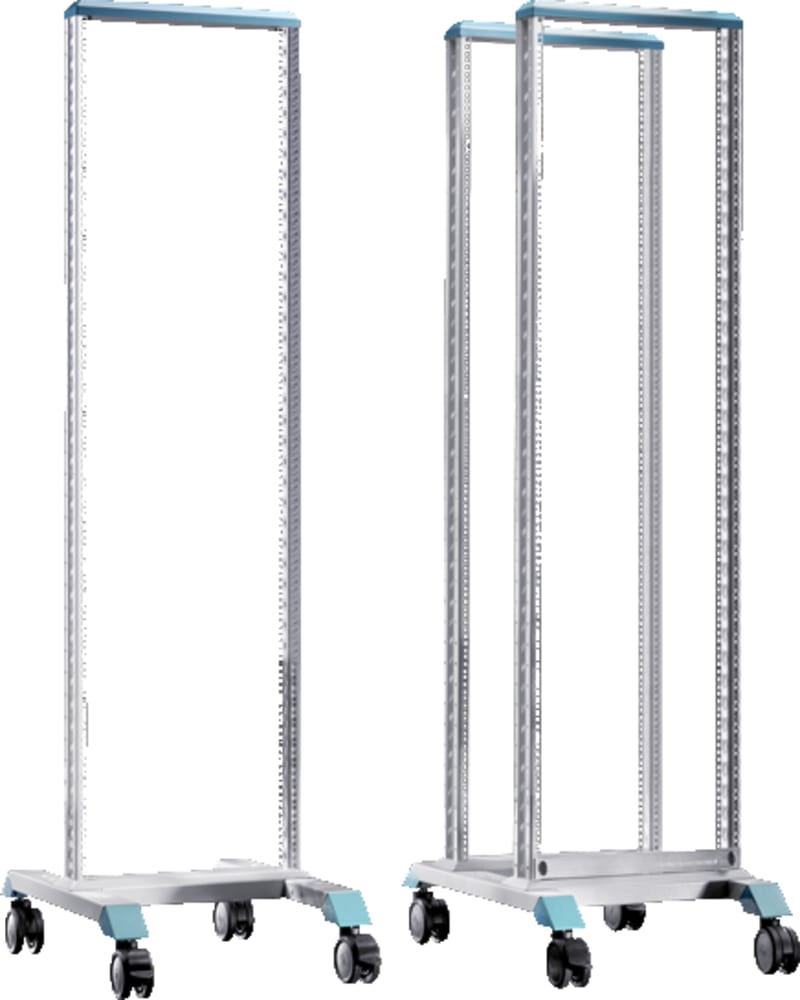

19" LAB-Stand 36U (7396000)
Part number7396000EAN / GTIN4028177129894HS code9403.20
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7396000 Manufacturer description: DK Data Rack distributor rack, WHD: 550x1721,8x750 mm, 36 U, RAL 7035.
Technical Specifications
- Manufacturer part number (MPN)
- 7396000
- EAN / GTIN
- 4028177129894
- Sales unit
- pcs
- Model designation
- DK 7396.000
- Product type
- Data Rack
- Material
- Profile frame, base/plinth: Carbon steel; Feet: Die-cast zinc
- General color
- RAL 7035
- Color
- Profile frame, base/plinth: RAL 7035; Panel, feet: RAL 5018
- Supply includes
- Torsionally rigid profile frame with 482.6 mm (19") holes; Stable base/plinth with integral feet, with the option of floor anchoring without base trim panels; Mounting Accessories
- Dimensions
- Width: 550 mm; Height: 1,722 mm; Depth: 750 mm
- Height units
- 36 U
- Hole pattern between the mounting levels
- 50 mm
- Load capacity of the 19" levels
- 1,500 N
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 15.1 kg
- Gross weight
- 18.5 kg
- PCF/VE (cradle-to-gate)
- 71.1 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002507
- ECLASS 8.0
- 27180602
- Width
- 550 mm
- Height
- 17218 mm
- Depth
- 750 mm
- Number of height units
- 36
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Max. load capacity
- 150 kg
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177129894
- SAP 1000016746
- Code 8129087
Product Documentation
Document preview: Rittal 7396000 — Data Sheet (OEM)
