Flatbox 12HE, 600mm DEEP
Pricing
Request a quote
We reply within 24 hours
Product Description

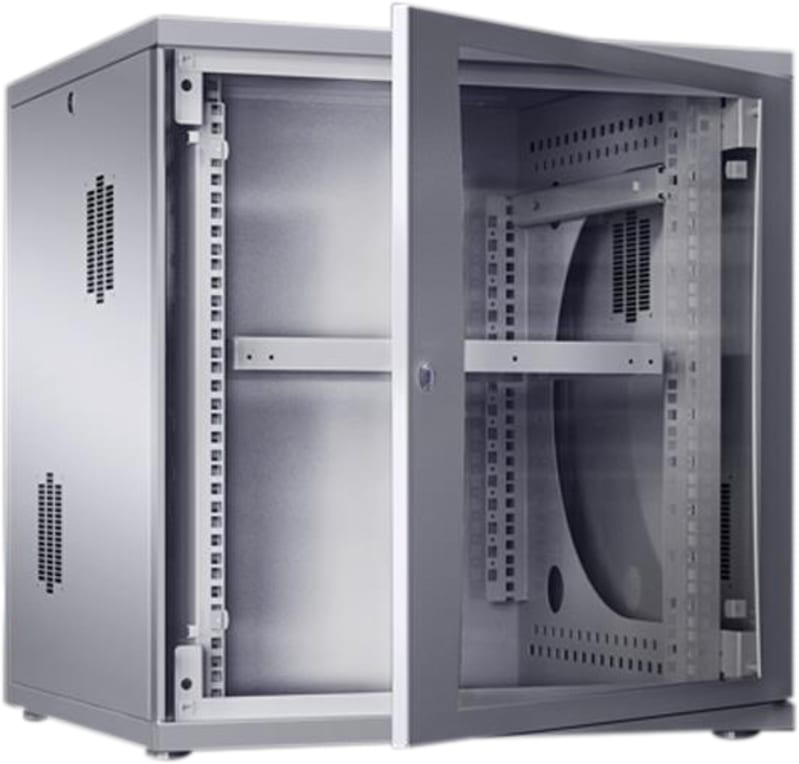

Rittal 7507120 Manufacturer description: DK FlatBox, WHD: 600x625x600 mm, 12 U, with 482.6 mm (19") mounting frame. FlatBox 12HE, 600mm deep.
Technical Specifications
- Manufacturer part number (MPN)
- 7507120
- EAN / GTIN
- 4028177551459
- Sales unit
- pcs
- Model designation
- DK 7507.120
- Product type
- FlatBox
- Version
- with 19" mounting frame
- Material
- Carbon steel; Viewing window: Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Supply includes
- Flat-packed enclosure; 1 wall section; 2 basic supports; 2 roof/base plates, with cut-outs for cable entry via brush strips; 2 side panels, lockable; 1 glazed door, lockable, security lock 3524 E, door catch freely selectable; Connection components for tool-free, fast assembly; Grounding kit for system-compatible grounding of all enclosure parts; 19" mounting frame
- Height units
- 12 U
- Dimensions
- Width: 600 mm; Height: 625 mm; Depth: 600 mm
- Installation height for components
- 12 U
- Load capacity
- max. 600 N
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 29.45 kg
- Gross weight
- 30.18 kg
- PCF/VE (cradle-to-gate)
- 118.1 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ETIM 8
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- Passive
- Width
- 600 mm
- Height
- 625 mm
- Depth
- 600 mm
- Number of height units
- 12
- Max. load capacity
- 60 kg
- With roof plate
- No
- With earthing
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177551459
- SAP 1000508154
- Code 8357678
Product Documentation
