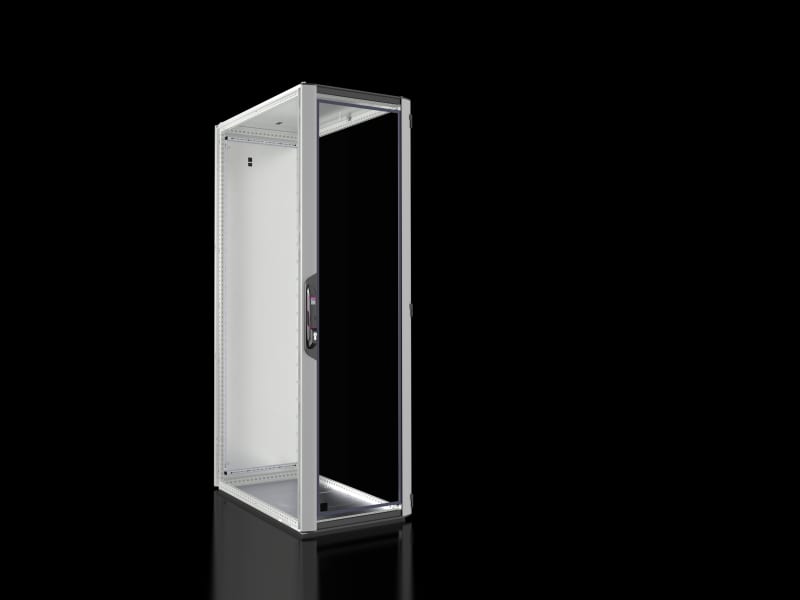

VX IT empty 600X2000X1000

Rittal 5308190 Manufacturer description: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2000 x 1000 mm, 42 U, IP 55. VX IT, solid, IP55, empty housing, RAL7035, WHD 600x2000x100mm, 42U.

Manufacturer part number (MPN)

5308190

EAN / GTIN

4028177945043

Sales unit

pcs

Model designation

VX 5308.190

Product type

Network/server rack VX IT

Material

Sheet steel; Aluminium; Glazed door: Single-pane safety glass

3 mm; Front door

Aluminium

1.25 mm; Rear door

Sheet steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished

General colour

RAL 7035

Colour

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections

RAL 9005; Handle and hinges

RAL 9005

Supply includes

VX enclosure frame with doors and roof plate; Glazed aluminium door at the front, 180° hinges; Sheet steel rear door, solid, one-piece

130° hinges; Lock front and rear

Comfort handle for profile half-cylinders and security lock 3524 E; Roof plate, one-piece, solid; Base tray with gland plate, multi-piece, solid; Baying seal and sealing kit for gland plates (supplied loose); 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet

Dimensions

Width: 600 mm; Height: 2,000 mm; Depth: 1,000 mm

Units

42 U

Roof design

one-piece, solid

Rear door design

Sheet steel door, solid, one-piece, 130° hinges

Front door design

Glazed aluminium door, solid, one-piece, 180° hinges

Mounting angle design

without

Base design

Base tray with gland plate, multi-piece, solid

Mounting angles position

without

Protection category to IEC 60 529

IP 55 only in conjunction with baying seal or screw-fastened side panels

IK Code

IK08

Basic material

Sheet steel

Net weight

81.7 kg

Gross weight

86.4 kg

PCF per pack (cradle-to-gate)

212.9 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Certificates

Negative Certificate; Surface finish; Protection category

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

600 mm

Height

2000 mm

Depth

1000 mm

Number of height units

42

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20
