Rittal
Cable Gland M16X1,5 15/frp
Part number2411811EAN / GTIN4028177810082HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

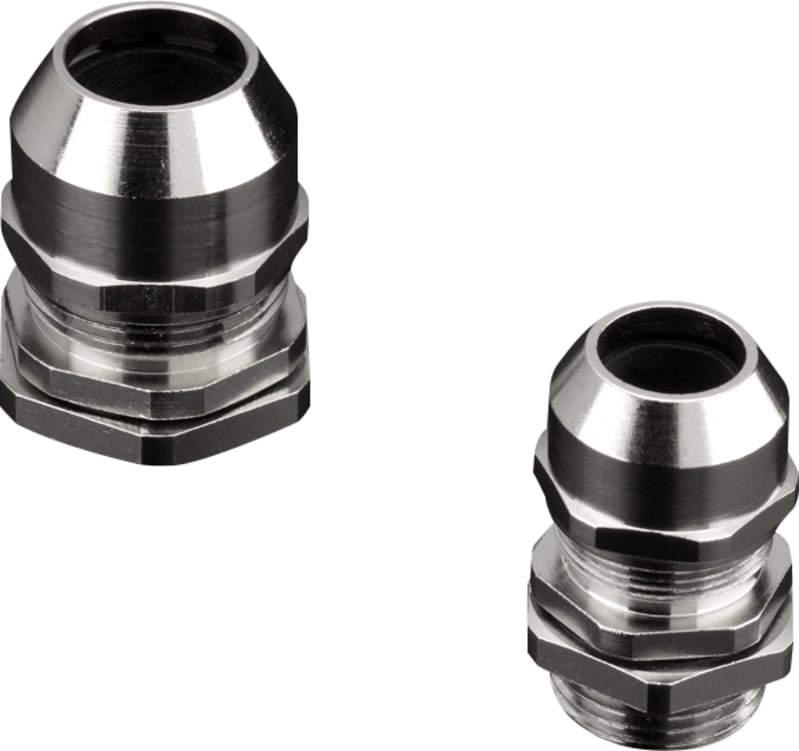

Rittal 2411811 Cable Gland in brass, zinc-plated, M16X1,5 15/frp.
Technical Specifications
- Manufacturer part number (MPN)
- 2411811
- EAN / GTIN
- 4028177810082
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Model designation
- SZ 2411.811
- Product type
- Cable gland, brass
- Material
- Brass; Seal: CR/NBR
- Surface finish
- Nickel-plated
- Protection category IP to IEC 60 529
- IP 68 (5 bar, 30 min.)
- Dimensions
- Height: 28 mm
- Thread
- M16 x 1.5
- Thread length
- 7 mm
- Min. cable diameter
- 5 mm
- Max. cable diameter
- 10 mm
- Operating temperature range
- -40 °C...100 °C; -40 °F...212 °F
- Width across flats
- 20 mm
- Type rating according to UL 50E
- Type 4X
- Packaging unit
- 15 pc(s).
- Net weight
- 0.3 kg
- Gross weight
- 0.451 kg
- Customs tariff number
- 74198090
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- UR + C-UR (recognized); VDE
- Thread type
- Metric
- Nominal thread size metric/PG
- 16
- Pitch thread
- 1.5 mm
- Wrench width
- 20 mm
- Hexagon angular dimension
- 17 mm
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177810082
- SAP 1200596539
- Code 82972157
Product Documentation
Document preview: Rittal 2411811 — Data Sheet (OEM)
