Rittal

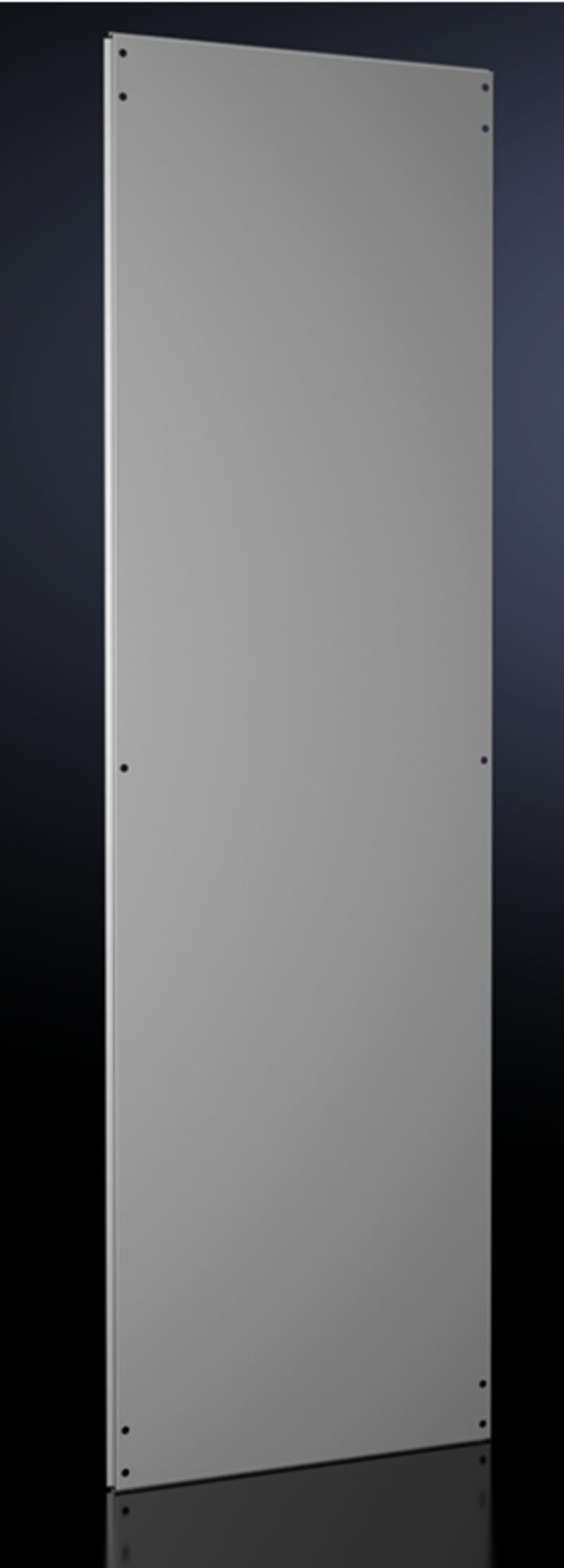

Skilewall VX 1800X600
Part number8609202EAN / GTIN4028177817760HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8609202 Skilevegg VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8609202
- EAN / GTIN
- 4028177817760
- Sales unit
- pcs
- Model designation
- VX 8609.202
- Product type
- Divider panel
- Material
- Sheet steel, 1.5 mm
- Surface finish
- Zinc-plated
- Supply includes
- Assembly parts
- To fit
- Enclosure type: VX; Height: = 1,800 mm; Depth: = 600 mm
- Installation options
- For mounting on the outer mounting level; This leaves the inner level free for further population
- Assembly instruction
- For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
- IP protection category to IEC 60 529
- IP 54
- Net weight
- 11.39 kg
- Gross weight
- 12.5 kg
- Customs tariff number
- 94039910
- ETIM 9
- EC002525
- Suitable for enclosure building depth
- 600 mm
- Height
- 1800 mm
- Surface finishing
- Galvanised
- Colour
- Grey
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177817760
- SAP 1200107167
- Code 81956178
Product Documentation
Document preview: Rittal 8609202 — Data Sheet (OEM)
More from Rittal
Rittal
App. adapter OM 65A,2,5-16mm² (9340650)
Rittal
Top plate IP55 for VX 800X1000
9681680
Rittal
Rittal 7888320 TX CableNet Cable Route 2000 x 308 mm
Rittal
Rittal 2746010 AX Operating Panel 597 x 597 x 36 mm IP54
Rittal
Base plate VX front / rear 300X200
8640020
Rittal
Rittal 7507740 DK Flatbox Levelling Feet M10 x 20 mm
Rittal
Skilewall VX 1800X500
8609201
Rittal
PDU metered 16A/3P 9XC19
7979230
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8609202?
- 8609202 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 8609202.
- What is the HS code for 8609202?
- The customs tariff (HS) code for 8609202 is 7326.90.
- Who manufactures 8609202?
- 8609202 is a Rittal product in the Enclosures range.
- Is a datasheet available for 8609202?
- Yes — the 8609202 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8609202?
- The minimum order quantity is 1.
- Is 8609202 available?
- Yes — 8609202 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
