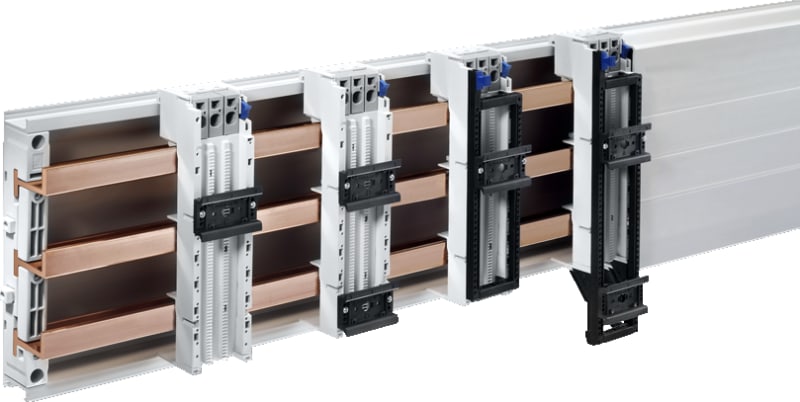

App. adapter OM 65A,2,5-16mm² (9340650)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340650 Manufacturer description: SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V. OM-adapter 65 A with spring terminal, with 2 DIN rails, width 55 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9340650
- EAN / GTIN
- 4028177502673
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Model designation
- SV 9340.650
- Product type
- OM adapter
- Version
- with tension spring clamp
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Support rail type
- Support frame, 1 x TS 55E, 1 x TS 55D-V
- Number of poles
- 3-pole
- Support frame support
- Yes
- Note on Model No.
- According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported
- Dimensions
- Width: 55 mm; Height: 272 mm
- Connection of round conductors
- 2.5 ‐ 16 mm²
- Support rails Qty/height
- 2 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 55 mm x 237 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.339 kg
- Gross weight
- 0.377 kg
- Copper weight (kg per piece)
- 0.059
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
- Mounting rail armament
- None
- Rated current In
- 65 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 55 mm
- Rail width
- 55 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502673
- SAP 1000116760
- Code 81069390
Product Documentation
More from Rittal
Rittal

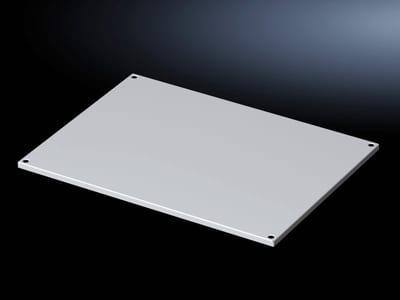

Top plate IP55 for VX 800X1000
9681680
Rittal

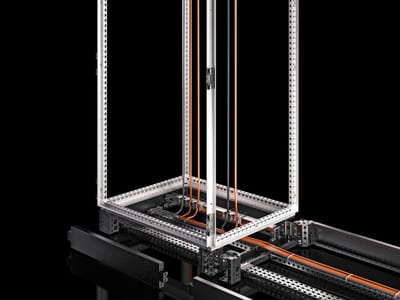

Rittal 7888320 TX CableNet Cable Route 2000 x 308 mm
Rittal

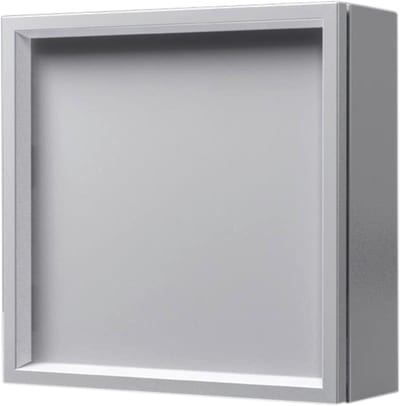

Rittal 2746010 AX Operating Panel 597 x 597 x 36 mm IP54
Rittal

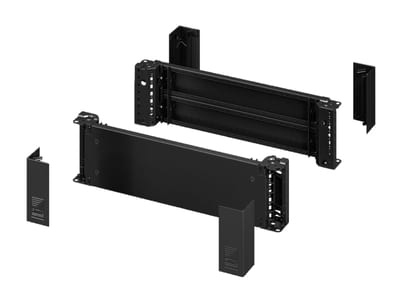

Base plate VX front / rear 300X200
8640020
Rittal

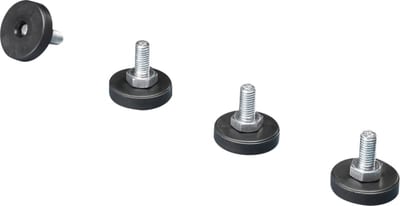

Rittal 7507740 DK Flatbox Levelling Feet M10 x 20 mm
Rittal

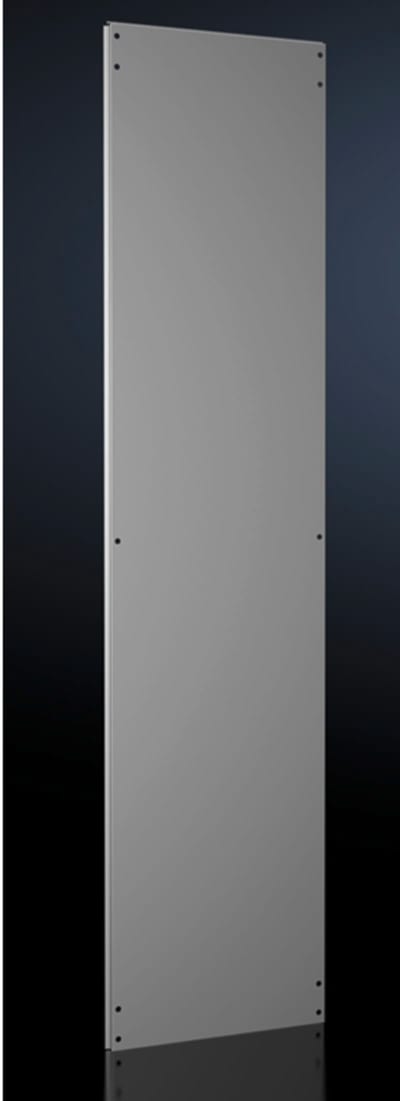

Skilewall VX 1800X500
8609201
Rittal

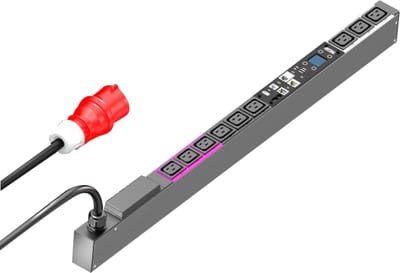

PDU metered 16A/3P 9XC19
7979230
Rittal

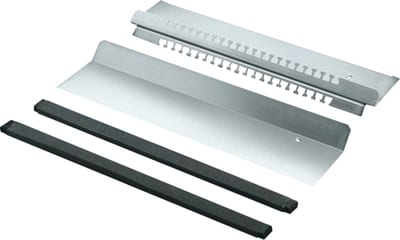

Bottom plate VX EMC B=1200mm
