Rittal 7507740 DK Flatbox Levelling Feet M10 x 20 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

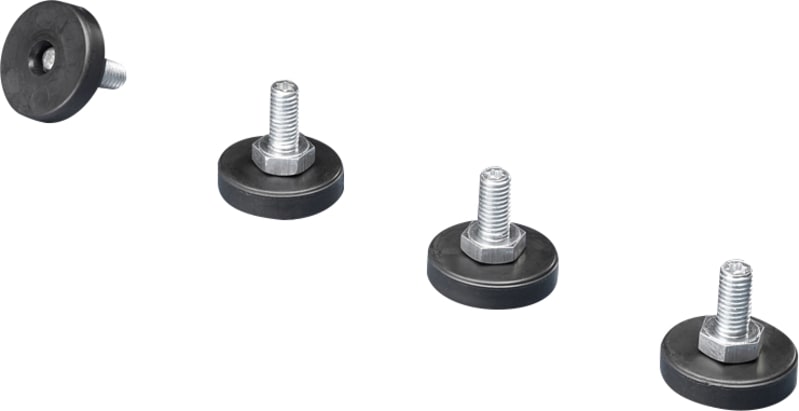

Rittal 7507740 is a set of four levelling feet for screw-fastening into the Flatbox enclosure base, with an M10 x 20 mm thread and a plastic base in RAL 9005. Each foot handles a static load up to 5,500 N and offers a 10 to 20 mm levelling range, adjustable with a 17 mm hex wrench.
Technical Specifications
- Manufacturer part number (MPN)
- 7507740
- EAN / GTIN
- 4028177552678
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- DK 7507.740
- Product type
- Leveling Feet
- Applications
- Instrument Cases; Floor-Standing Housing
- Function principle
- For screw-fastening into the enclosure base
- Material
- Base: Plastic
- Color
- Base: RAL 9005
- Levelling low
- 30 mm
- Adjustment tool
- Hex wrench, width across flats 0.67" (17 mm)
- Max. load capacity (static) per component
- 5,500 N; 1,236.449 lbf.
- Dimensions
- Thread: M10; Thread length: 20 mm; Thread: M10
- Leveling range
- 10 ‐ 20 mm
- Packaging unit
- 4 pc(s).
- Net weight
- 0.128 kg
- Gross weight
- 0.131 kg
- Customs tariff number
- 39232100
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Height
- 20 mm
- RAL-number
- 9005
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7318.19
Cross References
- EAN 4028177552678
- SAP 1000716087
- Code 8441256
Product Documentation
More from Rittal
Rittal
Skilewall VX 1800X500
8609201
Rittal
PDU metered 16A/3P 9XC19
7979230
Rittal
Bottom plate VX EMC B=1200mm
8618823
Rittal
Mounting rail trailing edge 6U
7507706
Rittal
Mounting Plate Spacer 1800
4590700
Rittal
Mounting plate KX 275X285
1567800
Rittal
Rittal 2741010 AX Operating Panel 377 x 297 x 36 mm IP54
Rittal

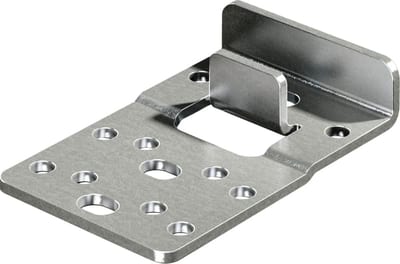

Mounting plate VX centre bracket B
