Rittal

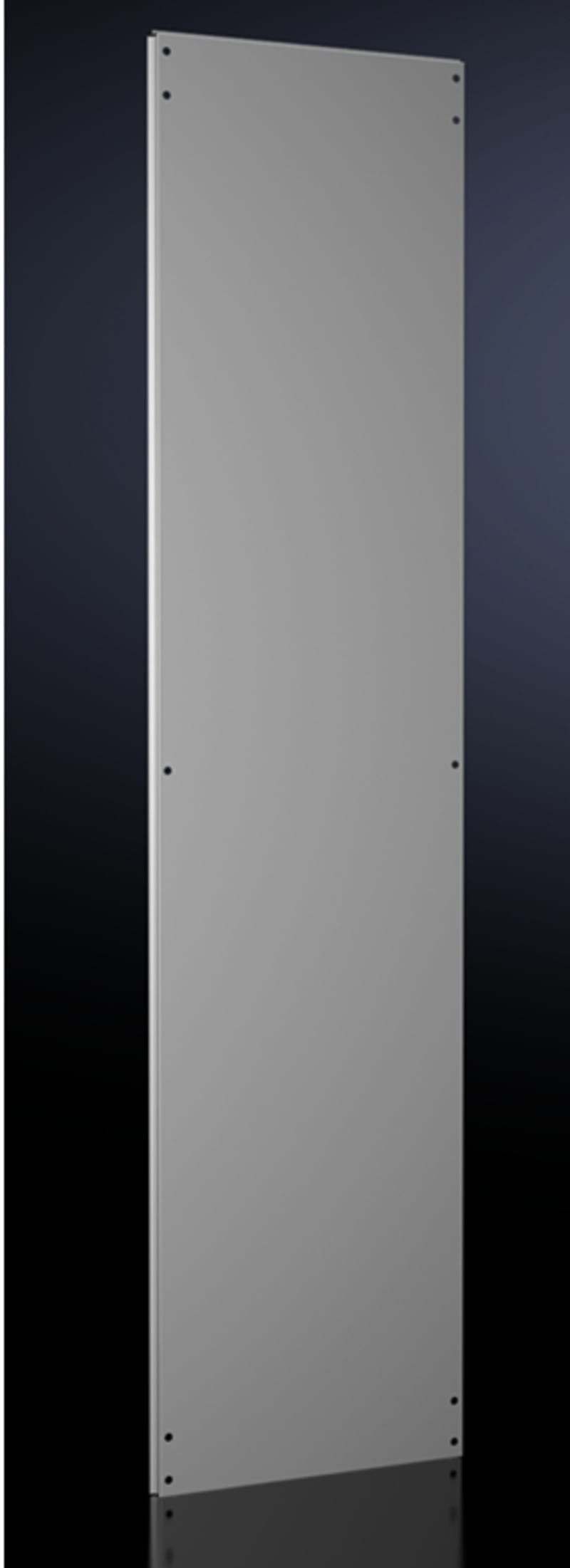

Skilewall VX 1800X500
Part number8609201EAN / GTIN4028177817753HS code8487.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8609201 Skilevegg VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8609201
- EAN / GTIN
- 4028177817753
- Sales unit
- pcs
- Model designation
- VX 8609.201
- Product type
- Divider panel
- Material
- Sheet steel, 1.5 mm
- Surface finish
- Zinc-plated
- Supply includes
- Assembly parts
- To fit
- Enclosure type: VX; Height: = 1,800 mm; Depth: = 500 mm
- Installation options
- For mounting on the outer mounting level; This leaves the inner level free for further population
- Assembly instruction
- For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
- IP protection category to IEC 60 529
- IP 54
- Net weight
- 9.5 kg
- Gross weight
- 10 kg
- Customs tariff number
- 94039910
- ETIM 9
- EC002525
- Suitable for enclosure building depth
- 500 mm
- Height
- 1800 mm
- Surface finishing
- Galvanised
- Colour
- Grey
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177817753
- SAP 1200107166
- Code 81956062
Product Documentation
Document preview: Rittal 8609201 — Data Sheet (OEM)
