Rittal
GA Aluminium Box 360X160X90
Part number9114210EAN / GTIN4028177145450HS code8487.90
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

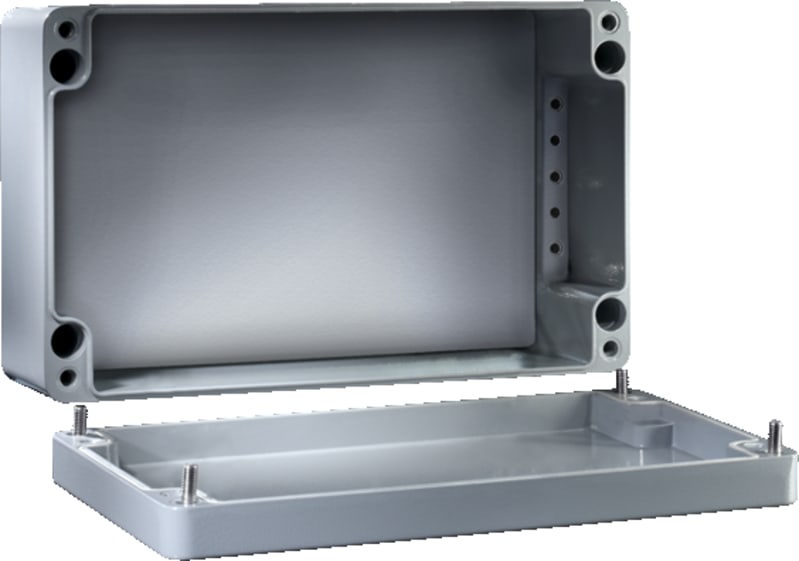

Rittal 9114210 Manufacturer description: GA Cast aluminium enclosure, WHD: 360x160x91 mm, Cast aluminum, without mounting plate, with cover.
Technical Specifications
- Manufacturer part number (MPN)
- 9114210
- EAN / GTIN
- 4028177145450
- Sales unit
- pcs
- Model designation
- GA 9114.210
- Product type
- Cast aluminum housing GA
- Material
- Housing: Cast aluminum; Cover: cast aluminum, all-round CR foam rubber round core seal
- Surface finish
- Textured paint
- Color
- RAL 7001
- Supply includes
- Housing with cover; Cover screws, captive; Screws for attaching support rails; Screw for connection of the PE conductor
- Protection category NEMA
- NEMA 4
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 360 mm; Height: 160 mm; Depth: 93 mm
- Base material
- Cast aluminum
- Packaging unit
- 1 pc(s).
- Net weight
- 3.04 kg
- Gross weight
- 3.14 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Grey
- Width
- 360 mm
- Height
- 160 mm
- Depth
- 93 mm
- RAL-number
- 7001
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- Yes
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 55.3 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- India
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177145450
- SAP 1000080758
- Code 8823537
Product Documentation
Document preview: Rittal 9114210 — Data Sheet (OEM)
More from Rittal
Rittal
Plinth VX rf B 600X100
8620050
Rittal
Rittal AX Comfort Handle with Lock Insert E1 for VW Cylinder Lock
2435200
Rittal
Rittal AX Operating Panel 377 x 597 x 36 mm Aluminium Frame
2743010
Rittal
Termination Hatch VX 1200X300
8620502
Rittal
Floor-standing cabinet VX 1200X1200X500
8215000
Rittal
VX IT Gliderail for HD 2HE 625mm
5302033
Rittal

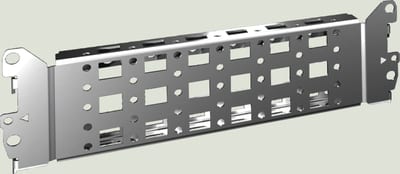

System chassis VX y 23X64 1000
