Rittal
System chassis VX 23X64 1000
Part number8617150EAN / GTIN4028177829152HS code9403.99
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

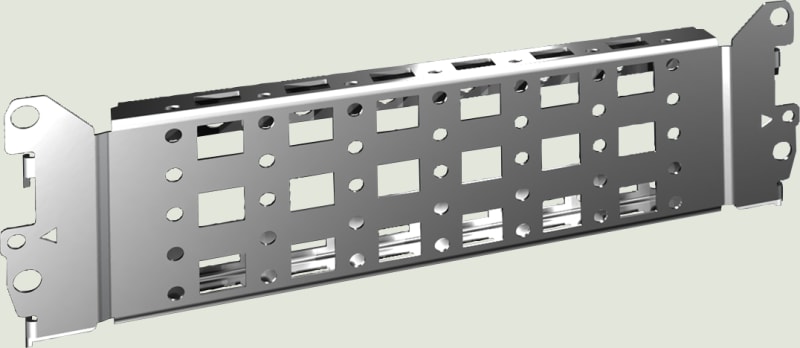

Rittal 8617150 Manufacturer description: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level. System chassis VX 23x64.
Technical Specifications
- Manufacturer part number (MPN)
- 8617150
- EAN / GTIN
- 4028177829152
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- VX 8617.150
- Product type
- System chassis 23 x 64 mm
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options VX
- In enclosure width/depth 1000 mm, on the inner mounting level
- Installation options VX SE
- In enclosure width 1000 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
- Installation options AX
- In enclosure width/height 1000 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
- Installation options AX stainless steel
- In enclosure width/height 1,000 mm, in conjunction with the base configuration rail
- Installation options VX Base
- In base/plinth width/depth 1,000 mm on the base/plinth panels, in conjunction with base/plinth installation bracket; In base/plinth width 1,100 mm for mounting on base/plinth corner pieces
- Packaging unit
- 4 pc(s).
- Net weight
- 4.12 kg
- Gross weight
- 4.22 kg
- PCF/VE (cradle-to-gate)
- 21.96
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189234
- Width
- 64 mm
- Height
- 18 mm
- Depth
- 925 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177829152
- SAP 1200107191
- Code 81964430
Product Documentation
Document preview: Rittal 8617150 — Data Sheet (OEM)
