App.adapter CB 500A 690V 4P n (9345734)
Pricing
Request a quote
We reply within 24 hours
Product Description

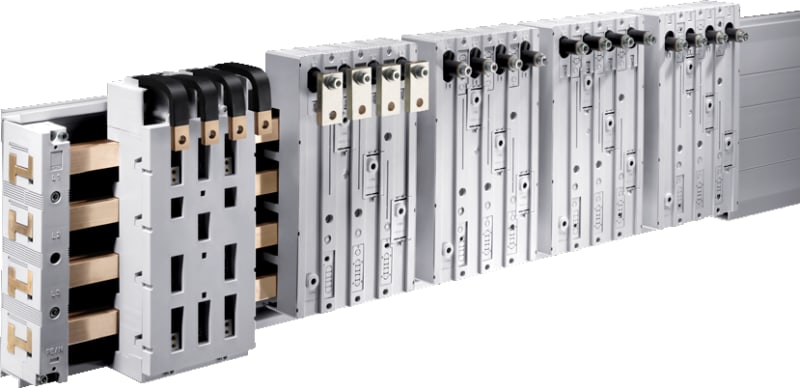

Rittal 9345734 Manufacturer description: SV Circuit-breaker component adaptor, 500 A, 690 V, 4-pole, cable outlet bottom, for switchgear make:, Siemens. Device Adapter CB 500A 690V cable output below.
Technical Specifications
- Manufacturer part number (MPN)
- 9345734
- EAN / GTIN
- 4028177684546
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Model designation
- SV 9345.734
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Supply includes
- Roll of copper; Connection screws
- Rated operating voltage
- 690 V, 4~
- Cable outlet
- Bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 4-pole
- Dimensions
- Width: 185 mm; Height: 300 mm
- Suitable for busbars
- Height: 5, 10 mm
- To fit manufacturer (model)
- Siemens
- Packaging unit
- 1 pc(s).
- Net weight
- 3.36 kg
- Gross weight
- 3.489 kg
- Copper weight (kg per piece)
- 2.103
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Rated current
- 500 A
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177684546
- SAP 1000791218
- Code 81404164
Product Documentation
