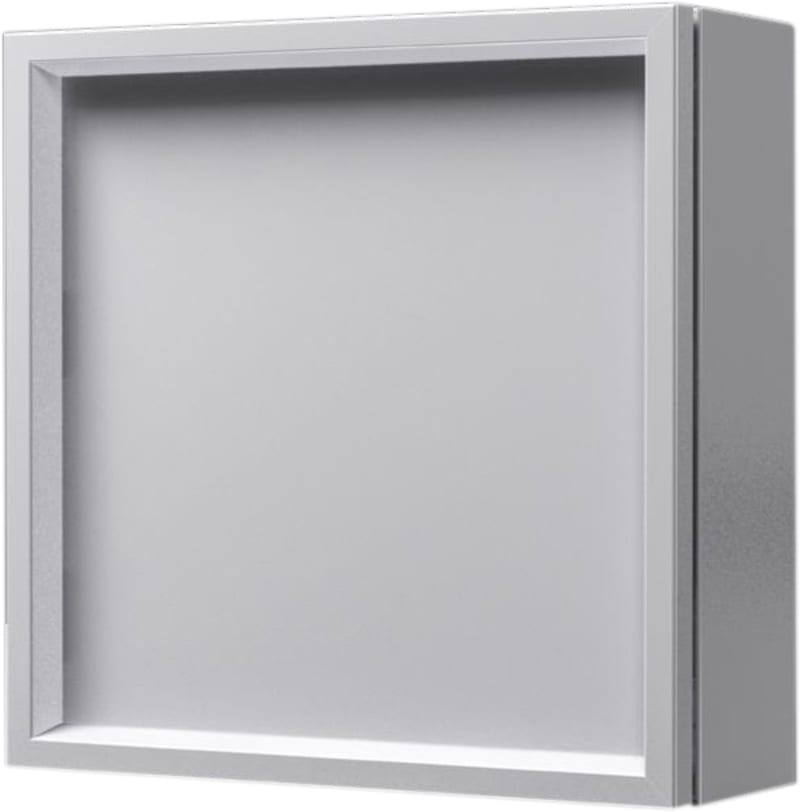

Rittal AX Operating Panel 377 x 597 x 36 mm Aluminium Frame
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2743010 is an AX operating panel with external dimensions 377 x 597 x 36 mm and an available population area of 307 x 527 mm. The naturally anodised aluminium frame is supplied with a display panel, hinges and brackets. It is rated IP54 and suits mounting on enclosure model 1008.000.
Technical Specifications
- Manufacturer part number (MPN)
- 2743010
- EAN / GTIN
- 4028177938533
- Sales unit
- pcs
- Model designation
- AX 2743.010
- Product type
- Operating panel
- Material
- Aluminum, natural anodized
- Supply includes
- Aluminum frame; Display panel; Hinges; Brackets
- Protection category IP to EN 60 529
- IP 54
- Suitable for Model No.
- 1008.000
- Dimensions
- Width: 377 mm; Height: 597 mm; Depth: 36 mm
- Dimensions of aluminium plate
- Width: 323 mm; Height: 543 mm
- Area available for population
- Width: 307 mm; Height: 527 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 3.22 kg
- Gross weight
- 3.44 kg
- Customs tariff number
- 76169990
- ETIM 9
- EC000747
- ETIM 8
- EC000747
- ECLASS 8.0
- 27182204
- Width
- 377 mm
- Height
- 597 mm
- Depth
- 36 mm
- EMC-version
- No
- Degree of protection (IP)
- IP54
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 4028177938533
- SAP 1200380189
- Code 82389209
