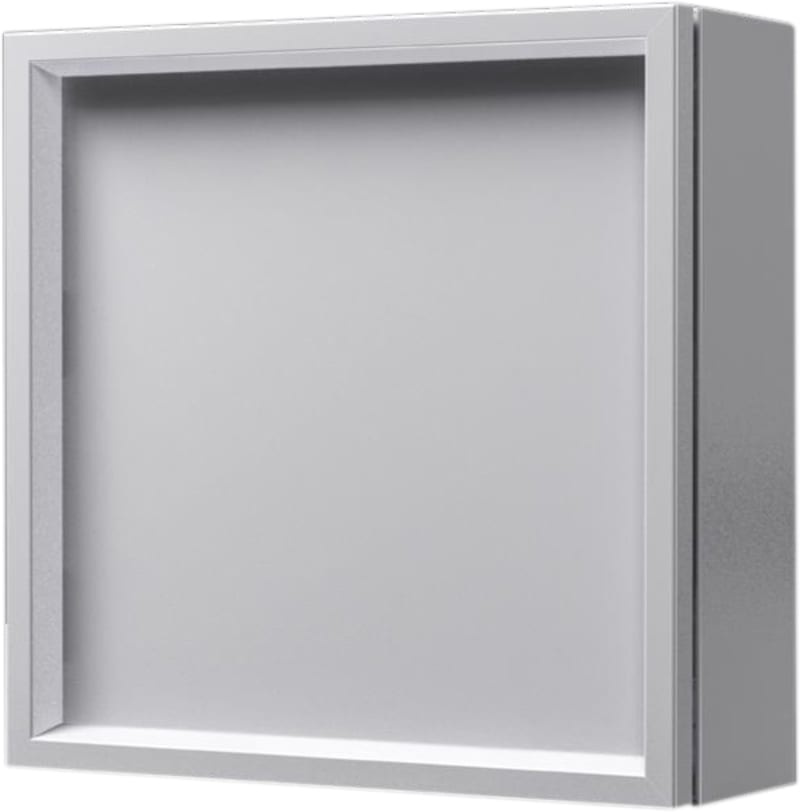

Rittal 2741010 AX Operating Panel 377 x 297 x 36 mm IP54
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2741010 is an AX operating panel measuring 377 x 297 x 36 mm, framed in natural-anodised aluminium and rated IP54 to EN 60 529. The kit includes the aluminium frame, display panel, hinges and brackets, with a 323 x 243 mm plate and a 307 x 227 mm usable population area. It is designed for enclosure model 1004.000.
Technical Specifications
- Manufacturer part number (MPN)
- 2741010
- EAN / GTIN
- 4028177938519
- Sales unit
- pcs
- Model designation
- AX 2741.010
- Product type
- Operating panel
- Material
- Aluminum, natural anodized
- Supply includes
- Aluminum frame; Display panel; Hinges; Brackets
- Protection category IP to EN 60 529
- IP 54
- Suitable for Model No.
- 1004.000
- Dimensions
- Width: 377 mm; Height: 297 mm; Depth: 36 mm
- Dimensions of aluminium plate
- Width: 323 mm; Height: 243 mm
- Area available for population
- Width: 307 mm; Height: 227 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 2.043 kg
- Gross weight
- 2.18 kg
- Customs tariff number
- 76169990
- ETIM 9
- EC000747
- ETIM 8
- EC000747
- ECLASS 8.0
- 27182204
- Width
- 377 mm
- Height
- 297 mm
- Depth
- 36 mm
- EMC-version
- No
- Degree of protection (IP)
- IP54
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 4028177938519
- SAP 1200380187
- Code 82389165
Product Documentation
