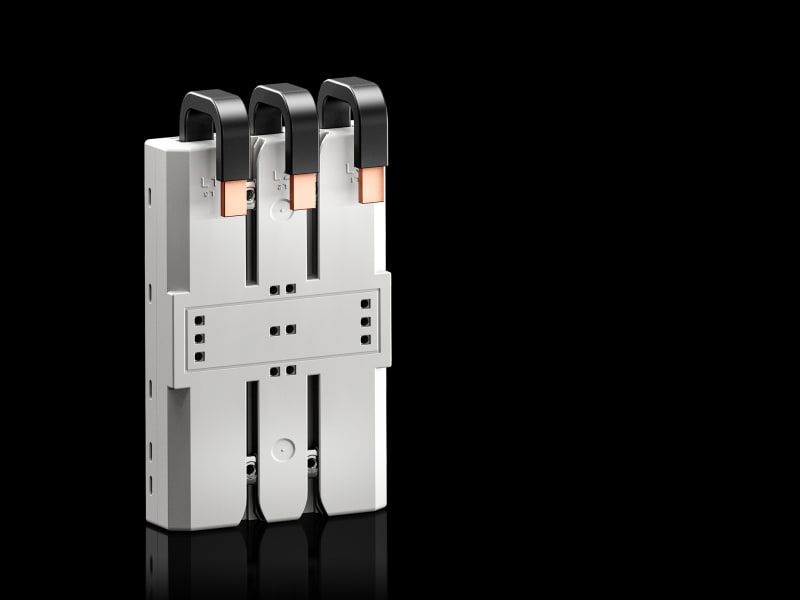

CB-device adapter 3-pole (9635100)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9635100 Manufacturer description: SV CB component adaptor160 A, 690 V (AC), 600 V (DC), 3-pole WH:; 90 x 160 mm, mounting distance 25 mm. CB-device adapter 160 A, 690 V (AC), 600 V (DC), 3-pole bh: 90 x 160 mm, monteringsavstand 25 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9635100
- EAN / GTIN
- 4028177951877
- Sales unit
- pcs
- Model designation
- SV 9635.100
- Product type
- Circuit-Breaker Component
- Function principle
- For mechanical attachment and direct contact of circuit breakers on the board; Mounting the circuit breaker with variably adjustable fastening points (M4)
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 600 V (DC), 3~; 690 V (AC), 3~
- Number of poles
- 3-pole
- Dimensions
- Width: 90 mm; Height: 160 mm; Depth: 45 mm
- Distance between fixing points
- 25 mm
- Cable outlet
- Top/bottom
- To fit manufacturer (model)
- ABB (XT1); Allen Bradley (140G-G); Siemens (3VA10, 3VA11, 3VA51)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.58 kg
- Gross weight
- 0.582 kg
- Copper weight (kg per piece)
- 0.276
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL + C-UL (listed)
- Mounting rail armament
- None
- Type of electric connection
- Laminated copper rail
- Rated current In
- 160 A
- Min. busbar thickness
- 0 mm
- Width of the adaptor
- 90 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177951877
- SAP 1200596569
- Code 82972179
Product Documentation
More from Rittal
Rittal
System chassis VX 23X89 rf 800
8100733
Rittal
CMC III access sensor VX
7030128
Rittal
Rittal 8100711 VX Levelling Component for 200 mm Base/Plinth
Rittal
VX IT Partition plate heleinnsk HD 2200*1000
5301287
Rittal

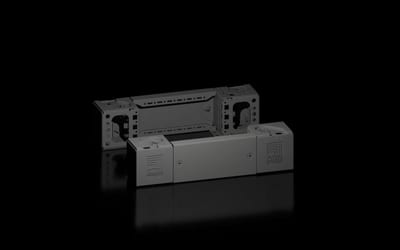

Plinth VX incl. front/rear panel 100X400
