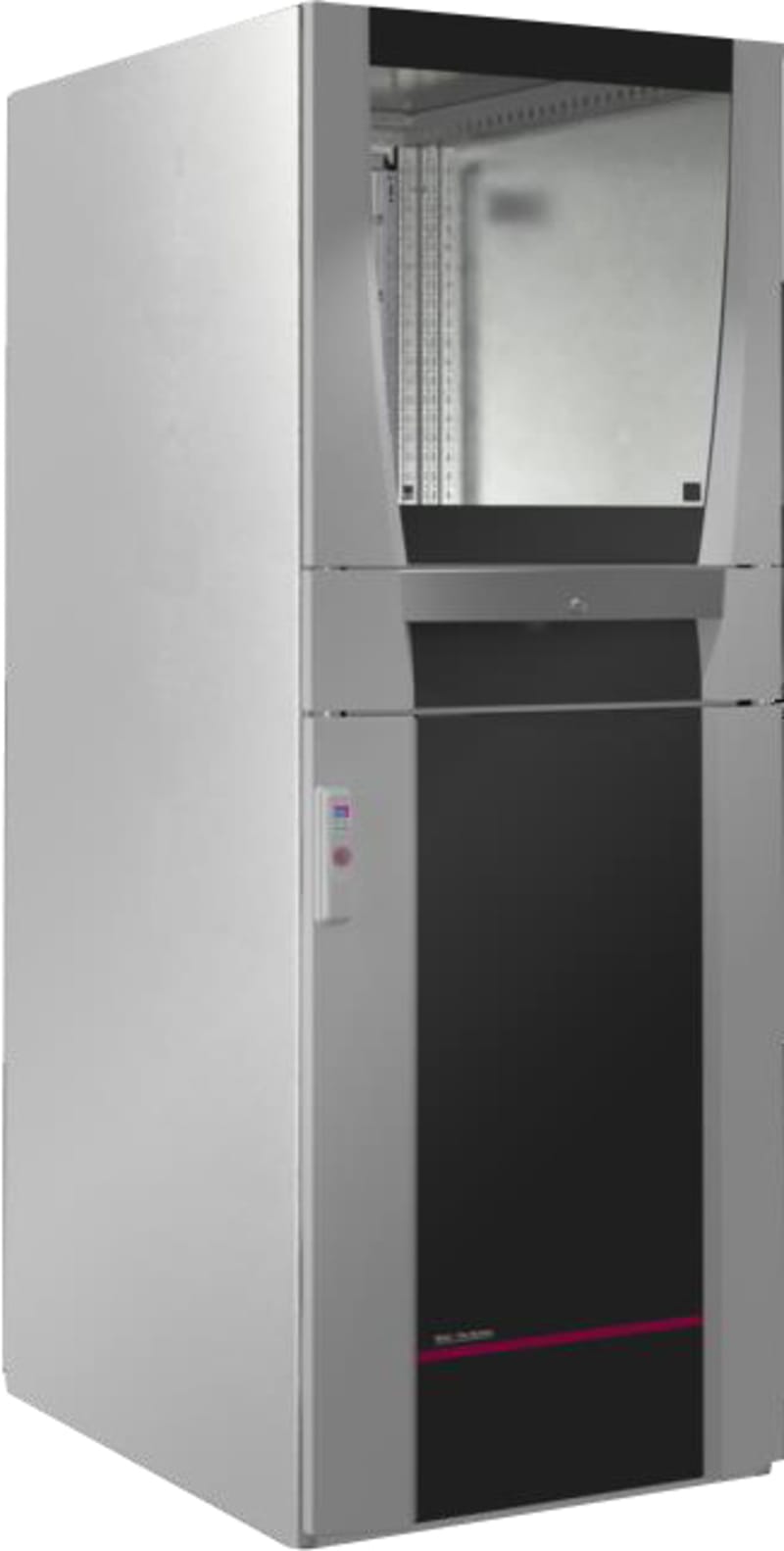

Rittal SE PC Enclosure System 600x1600x836 mm with Keyboard Drawer
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal PC 5368.050 PC enclosure system in sheet steel, 600 mm wide by 1600 mm high by 836 mm deep, RAL 7035. The unit ships with a glazed door at the top, keyboard drawer and component shelf for operator terminal installations. Rated IP55 (IEC 60529), NEMA 12 and UL Type 1/12.
Technical Specifications
- Manufacturer part number (MPN)
- 5368050
- EAN / GTIN
- 4028177959446
- Sales unit
- pcs
- Model designation
- PC 5368.050
- Product type
- PC enclosure system
- Version
- with glazed door at the top, keyboard drawer and component shelf
- Material
- Housing, door, rear door, mounting compartment, supports: carbon steel; Handles, decorative trim panels: Plastic; Door trim panels: Aluminum; Viewing window: Single-pane safety glass
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint
- General color
- RAL 7035
- Color
- Housing, door, decorative trim panels, supports: RAL 7035; Handle: RAL 7015; Monitor field, door center section: RAL 7015
- Supply includes
- Housing, door, rear door; Base Plates; Glazed door, top; Keyboard drawer; Component shelf
- Dimensions
- Width: 600 mm; Height: 1,600 mm; Depth: 836 mm
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 12
- Type rating according to UL 50E
- Type 1; Type 12
- Max. keyboard dimensions
- 480 x 70 x 260 mm
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 108.5 kg
- Gross weight
- 110 kg
- PCF/VE (cradle-to-gate)
- 422.9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002502
- ECLASS 8.0
- 27180501
- Width
- 600 mm
- Height
- 1600 mm
- Depth
- 836 mm
- Surface finishing
- Powder coating
- Colour body
- Grey
- RAL-number body
- 7035
- Degree of protection (IP)
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177959446
- SAP 1200596551
- Code 82972180
