Rittal
Termoelektr. cooler, 110-230V
Part number3201200EAN / GTIN4028177598614HS code8415.83
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

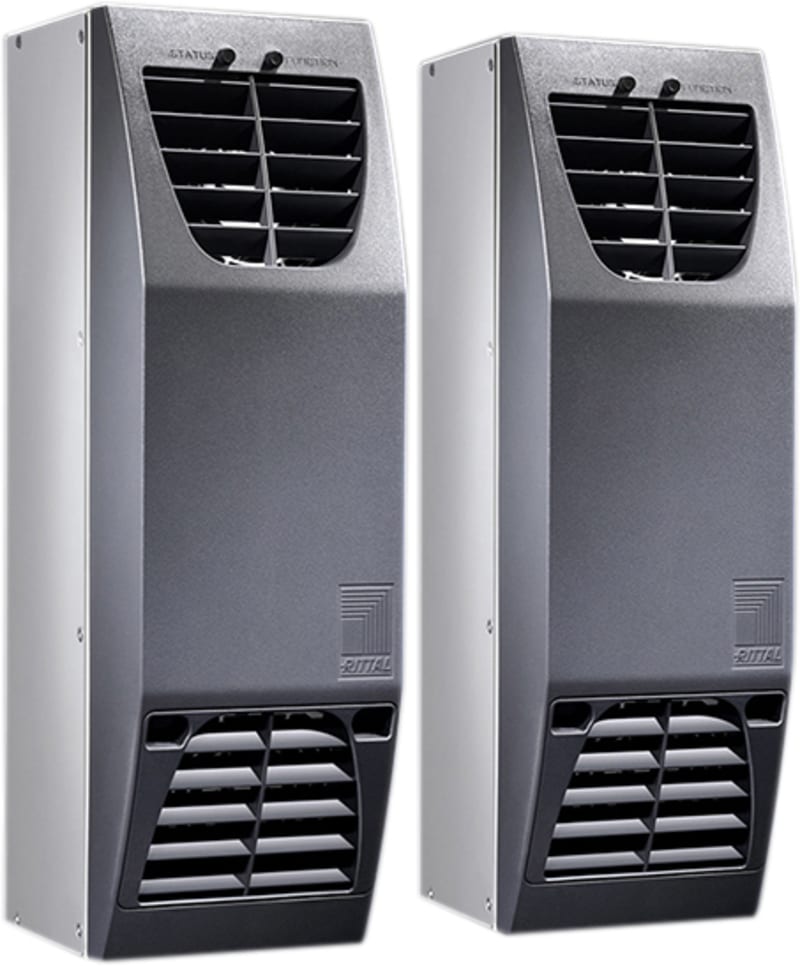

Rittal 3201200 Manufacturer description: SK Thermoelectric cooler, 80/80 W, 100-240 V, 1~, 50/60 Hz, WHD:; 125 x 400 x 155 mm. SK Thermoelectric cooler, 110-230V.
Technical Specifications
- Manufacturer part number (MPN)
- 3201200 EAN / GTIN: 4028177598614 Sales unit: pcs Model designation: SK 3201.200 Product type: Thermoelectric Cooler material: Device: Aluminum, anodized General color: RAL 7015 Color: Cover: RAL 7015 Supply includes: Thermoelectric climate control unit; Wired ready for connection (plug-in terminal strip); Mounting Accessories; Filter Mat; USB cable A/B; Drilling template Total cooling output to DIN EN 14511: Cooling output L35 L35/50 Hz: 80 W; Cooling output L35 L35/60 Hz: 80 W; Cooling output L35 L35/50 Hz: 273 BTU/h; Cooling output L35 L35/60 Hz: 273 BTU/h Total cooling output L35 L30: Cooling output L35 L30/50 Hz : 100 W; Cooling output L35 L30/60 Hz : 100 W Rated operating voltage: 100 V - 240 V, 1~, 50 Hz/60 Hz Air throughput (unimpeded air flow): External circuit: 45 m³/h; Internal circuit: 45 m³/h; External circuit: 26.5 cfm; Internal circuit: 26.5 cfm Thermal output: 80 W; 273 BTU/h Version: wall-mounted Dimensions: Width: 125 mm; Height: 400 mm; Depth: 155 mm Protection category IP to EN 60 529: External circuit, IP 34; Internal circuit, IP 54 Power pack integrated: Yes Type of connection (electrical): Plug-in Spring Connection Terminal Temperature control: PID control (factory setting: cooling +35 °C / heating +5 °C) Operating temperature range: -30 °C...55 °C; -22 °F...131 °F Setting range – cooling: 5 °C...55 °C Setting range – heating: -10 °C...20 °C Packaging unit: 1 pc(s). Net weight: 4.05 kg Gross weight: 4.38 kg Customs tariff number: 84186900 ETIM 9: EC000855 ETIM 8: EC000855 ECLASS 8.0: 27180704 Width: 125 mm Height: 400 mm Depth: 155 mm Voltage type: AC With heating function: Yes With temperature control: Yes Function master/slave: Yes Ambient temperature during operating: 10–55 °C Operating voltage AC 50 Hz: 90–264 V Operating voltage AC 60 Hz: 90–264 V Total cooling capacity according to EN 14511 at 35/35 °C: 100 W Speed-regulated: No Cooling air flow rate: 0–45 m³/h Country of origin: Italy
Standards & Compliance
- HS Code
- 8415.83
Cross References
- EAN 4028177598614
- SAP 1000508071
- Code 8357525
Product Documentation
Document preview: Rittal 3201200 — Data Sheet (OEM)
More from Rittal
Rittal
Filter Fans 180M³/h 230V RAL 9005
3240108
Rittal
PK BOX KL.Cover 360X254X165
9524100
Rittal
PK BOX GR.Cover 254X180X165
9522000
Rittal

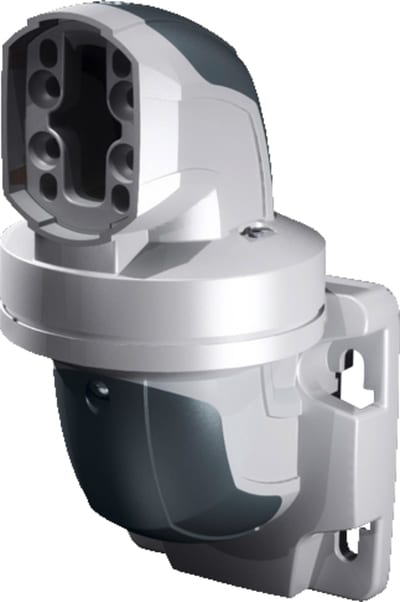

Rittal 6206740 CP 60 Swivelling Wall-Mounted Hinge
Rittal

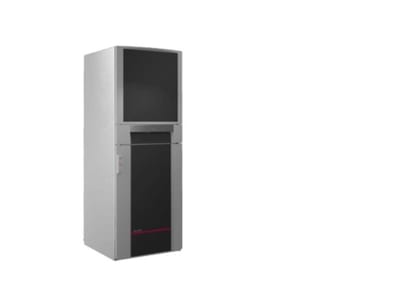

PC Enclosure System SE with Keyboard Drawer, Large Mounting
5366450
Rittal

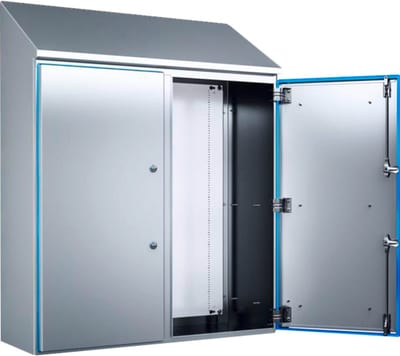

Compact enclosure HD 1010X1250X400
1319600
Rittal

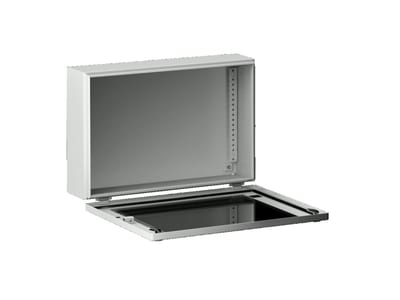

Bus-cabinet KX 400X200X155
