Rittal

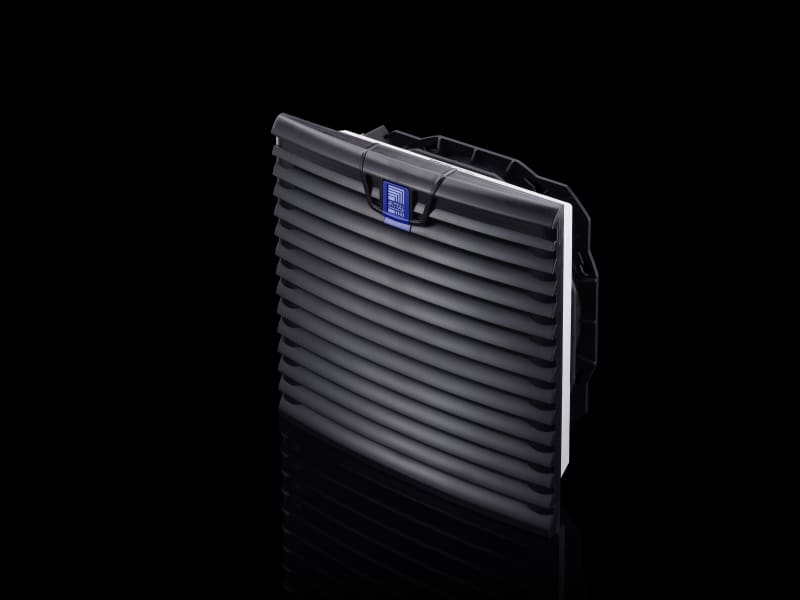

Filter Fans 180M³/h 230V RAL 9005
Part number3240108EAN / GTIN4028177663503HS code8414.59
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3240108 Manufacturer description: SK Fan-and-filter unit TopTherm, 103/91.2 cfm 230 V, 1~, 50/60 Hz, WHD: 255 x 255 x 25 mm. Complete fan unit for mounting on flater without tool. Lufteffekt on 20 - 900 m³/h, IP 54.
Technical Specifications
- Manufacturer part number (MPN)
- 3240108
- EAN / GTIN
- 4028177663503
- Sales unit
- pcs
- Model designation
- SK 3240.108
- Product type
- TopTherm Filter Fan Units
- Version
- wall-mounted
- Product changes
- Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.
- Color
- RAL 9005
- Supply includes
- Complete unit ready to install, including chopped fiber filter mat
- Fan
- Diagonal, shaded pole motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 218 m³/h; At 60 Hz: 188 m³/h; At 50 Hz: 128.31 cfm; At 60 Hz: 110.65 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 175 m³/h; At 60 Hz: 155 m³/h; At 50 Hz: 103 cfm; At 60 Hz: 91.2 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 35 W; At 60 Hz: 34 W
- Dimensions
- Width: 255 mm; Height: 255 mm
- Installation depth
- 107 mm
- Mounting cut-out
- Width of opening: 224 mm; Cut-out height: 224 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -30 °C...55 °C; -22 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 51 dB(A); At 60 Hz: 46 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 2.12 kg
- Gross weight
- 2.36 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- 30 - KC Korea; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Black
- Width
- 255 mm
- Height
- 255 mm
- Depth
- 132 mm
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 35 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 180 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177663503
- SAP 1200596677
- Code 82973223
Product Documentation
Document preview: Rittal 3240108 — Data Sheet (OEM)
