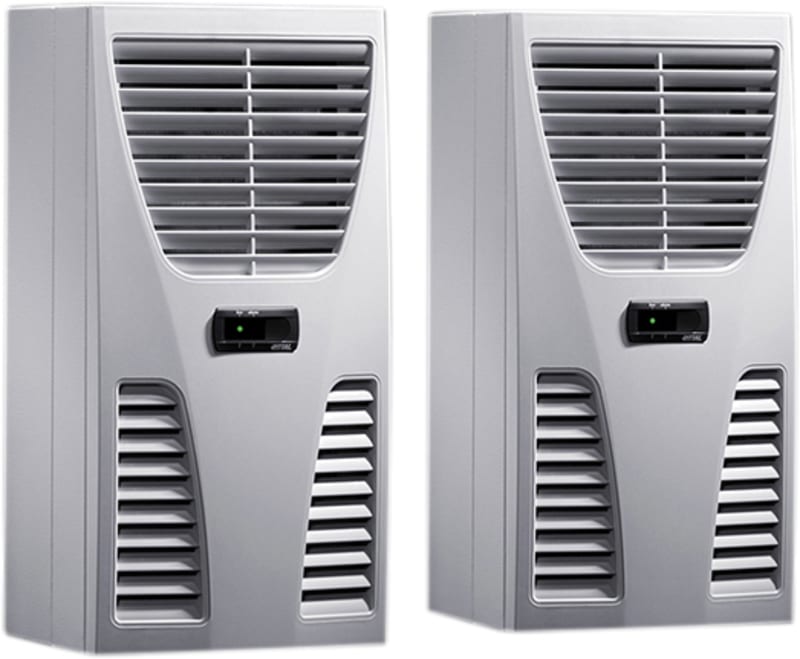

Rittal 3302110 SK TopTherm Wall-Mounted Cooling Unit 300 W 115 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3302110 (SK 3302.110) is a TopTherm wall-mounted enclosure cooling unit rated 300 W (1,092 BTU/h at L35/L35, 60 Hz) on a 115 V single-phase 60 Hz supply. The carbon-steel housing measures 280 x 550 x 140 mm (W x H x D) and is finished in RAL 7035; the external circuit is IP34 and the internal circuit IP54 (UL Type 12). The condenser is coated with hydrophobic RiNano finish and the unit ships wired ready for connection with a plug-in terminal strip, drilling template and fasteners. Refrigerant is R-513A (0.13 kg, GWP 631).
Technical Specifications
- Manufacturer part number (MPN)
- 3302110
- EAN / GTIN
- 4028177322813
- Sales unit
- pcs
- Model designation
- SK 3302.110
- Product type
- Wall-Mounted Cooling Unit
- Version
- wall-mounted
- Material
- Carbon steel
- Color
- RAL 7035
- Supply includes
- Condenser with hydrophobic RiNano coating; Wired ready for connection (plug-in terminal strip); Drilling template; Fasteners
- Total cooling output to DIN EN 14511
- Cooling output L35 L35/60 Hz: 0.32 kW; Cooling output L35 L50/60 Hz: 0.16 kW; Cooling output L35 L35/60 Hz: 1,092 BTU/h; Cooling output L35 L50/60 Hz: 546 BTU/h
- Rated operating voltage
- 115 V, 1~, 60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 310 m³/h; Internal circuit: 345 m³/h; External circuit: 182.5 cfm; Internal circuit: 203.1 cfm
- Dimensions
- Width: 280 mm; Height: 550 mm; Depth: 140 mm
- Protection category IP to EN 60 529
- External circuit, IP 34; Internal circuit, IP 54
- Protection category NEMA
- UL Type 12
- Refrigerant/cooling medium
- Refrigerant: R-513A; Quantity: 0.13 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.08 t; Refrigerant: R-513A; Quantity: 0.3 lb.
- Temperature control
- Basic controller (factory setting +35 °C)
- Operating temperature range
- 10 °C...55 °C; 50 °F...131 °F
- Operating temperature max @60
- 54 °C
- Hz
- 129 °F
- Storage temperature range
- -40 °C...70 °C; -40 °F...158 °F
- Setting range
- 30 °C...54 °C; 86 °F...129 °F
- Rated power Pel
- Rated power L35 L35/60 Hz: 0.31 kW; Rated power L35 L50/60 Hz: 0.36 kW
- Permissible operating pressure (p. max.)
- 25 bar; 362.6 PSI
- Packaging unit
- 1 pc(s).
- Net weight
- 12.191 kg
- Gross weight
- 12.833 kg
- Customs tariff number
- 84158200
- ETIM 9
- EC000855
- ETIM 8
- EC000855
- ECLASS 8.0
- 27180704
- Approvals
- UL + C-UL (listed); UL + C-UL - FTTA; UR + C-UR (recognized)
- Width
- 280 mm
- Height
- 550 mm
- Depth
- 140 mm
- Voltage type
- AC
- With heating function
- No
- With temperature control
- Yes
- Function master/slave
- Yes
- Ambient temperature during operating
- 10–55 °C
- Operating voltage AC 50 Hz
- 104–126 V
- Operating voltage AC 60 Hz
- 104–126 V
- Total cooling capacity according to EN 14511 at 35/35 °C
- 300 W
- Speed-regulated
- No
- Country of origin
- Italy
