Rittal
TE Fan Expansion Kit 230 V
Part number7980000EAN / GTIN4028177137752HS code8414.90
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

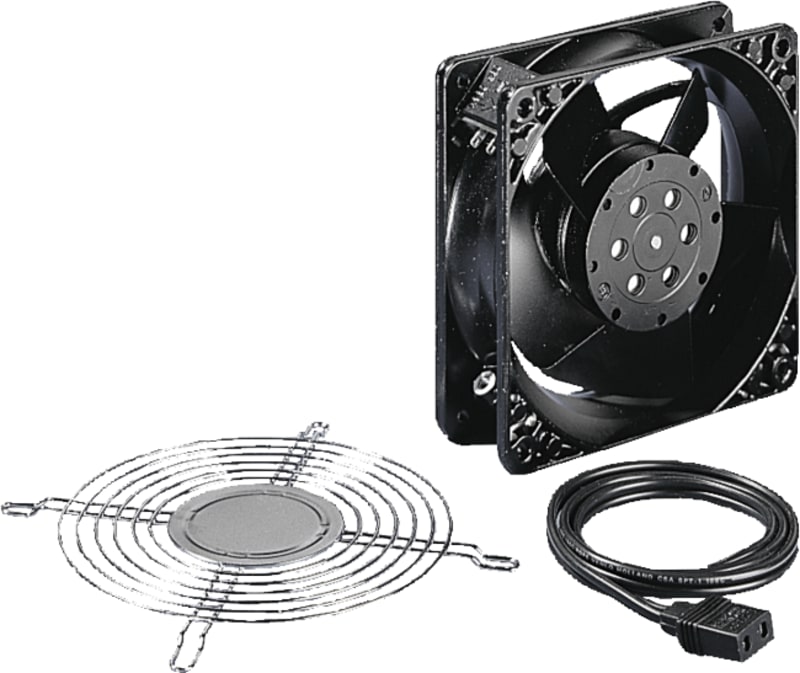

Rittal 7980000 (SK 7980.000) fan expansion kit for TE enclosures, 230 V — supplied with fans, 0.61 m connection cable and assembly components.
Technical Specifications
- Manufacturer part number (MPN)
- 7980000
- EAN / GTIN
- 4028177137752
- Sales unit
- pcs
- Model designation
- SK 7980.000
- Product type
- Fan expansion kit
- Supply includes
- Fans; Connection cable (0.61 m); Assembly components
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 160 m³/h; At 60 Hz: 180 m³/h; At 50 Hz: 94.2 cfm; At 60 Hz: 105.9 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 15 W; At 60 Hz: 14 W
- Dimensions
- Width: 119 mm; Height: 119 mm; Depth: 38 mm
- Operating temperature range
- -10 °C...55 °C; 14 °F...131 °F
- Noise pressure level
- At 50 Hz: 37 dB(A); At 60 Hz: 37 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.6 kg
- Gross weight
- 0.671 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ECLASS 8.0
- 27180716
- Colour
- Grey
- Width
- 119 mm
- Height
- 119 mm
- Depth
- 38 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- With filter
- No
- Rated power
- 15 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 160 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Operating voltage DC
- 230 V
- Country of origin
- China
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 4028177137752
- SAP 1000288141
- Code 845692
Product Documentation
Document preview: Rittal 7980000 — Data Sheet (OEM)
