Rittal

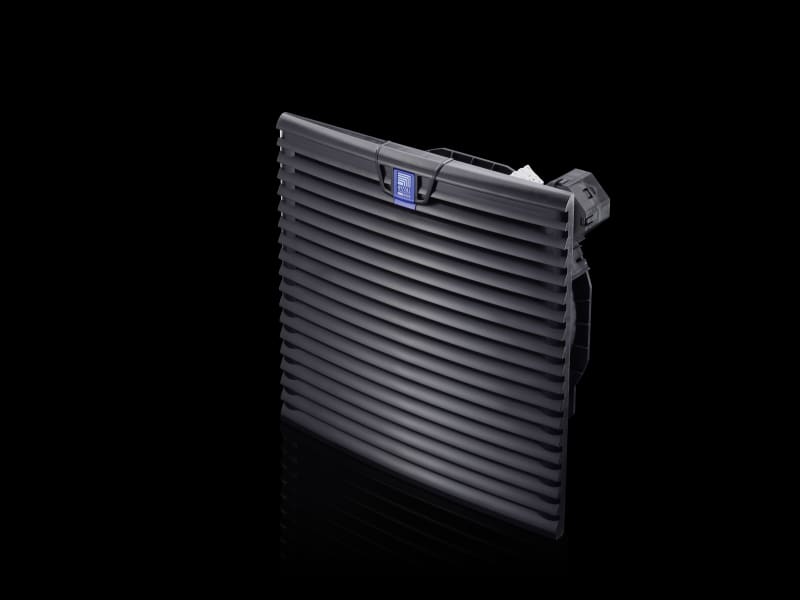

Filter Fans 700M³/h 230V RAL 9005
Part number3244108EAN / GTIN4028177663886HS code8414.59
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3244108 Manufacturer description: SK fan-and-filter fan TopTherm, 412/453.2 cfm 230 V, 1 ~, 50/60 Hz, WHD: 323 x 323 x 25 mm. Complete fan unit for mounting on flater without tool. Lufteffekt on 20 - 900 m³/h, IP 54.
Technical Specifications
- Manufacturer part number (MPN)
- 3244108
- EAN / GTIN
- 4028177663886
- Sales unit
- pcs
- Model designation
- SK 3244.108
- Product type
- TopTherm Filter Fan Units
- Version
- wall-mounted
- Product changes
- Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.
- Color
- RAL 9005
- Supply includes
- Complete unit ready to install, including chopped fiber filter mat
- Fan
- Diagonal, 1~ capacitor motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 855 m³/h; At 60 Hz: 905 m³/h; At 50 Hz: 503.23 cfm; At 60 Hz: 532.66 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 700 m³/h; At 60 Hz: 770 m³/h; At 50 Hz: 412 cfm; At 60 Hz: 453.2 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 95 W; At 60 Hz: 135 W
- Dimensions
- Width: 323 mm; Height: 323 mm
- Installation depth
- 130.5 mm
- Mounting cut-out
- Width of opening: 292 mm; Cut-out height: 292 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -30 °C...55 °C; -22 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 65 dB(A); At 60 Hz: 66 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 4.7 kg
- Gross weight
- 4.92 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- 30 - KC Korea; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Black
- Width
- 323 mm
- Height
- 323 mm
- Depth
- 155.5 mm
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 95 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 700 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177663886
- SAP 1200648640
- Code 83066073
