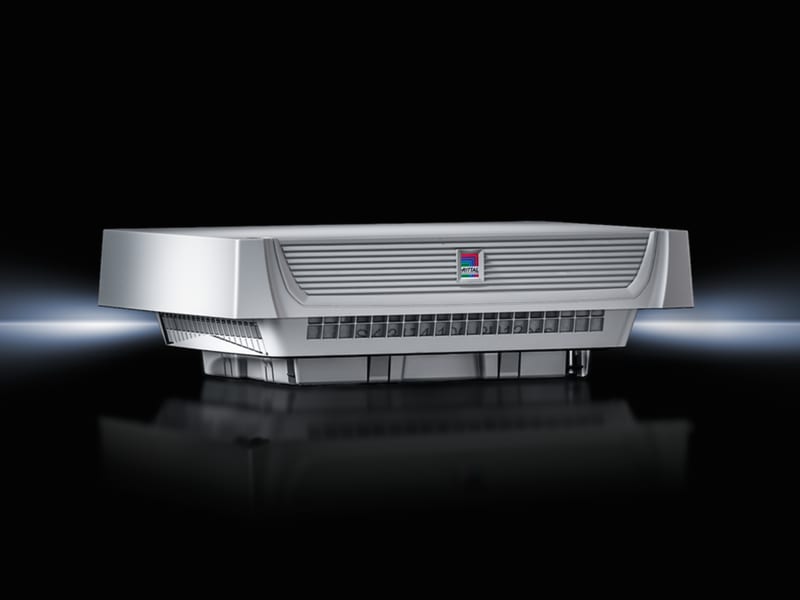

Ceiling Fans EC 1069 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3140500 Manufacturer description: SK roof-mounted fan TopTherm, 629.20/629.20 cfm 230 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology. The new the generation ceiling fans, et system for all sizes.
Technical Specifications
- Manufacturer part number (MPN)
- 3140500
- EAN / GTIN
- 4028177709126
- Sales unit
- pcs
- Model designation
- SK 3140.500
- Product type
- Roof-Mounted Fans
- Version
- roof-mounted; EC
- Material
- Plastic ABS
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including pleated filter
- Fan
- Radial, EC motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 976 m³/h; At 60 Hz: 976 m³/h; At 50 Hz: 574.45 cfm; At 60 Hz: 574.45 cfm
- Unimpeded air flow (without filter mats)
- At 50 Hz: 1,069 m³/h; At 60 Hz: 1,069 m³/h; At 50 Hz: 629.19 cfm; At 60 Hz: 629.19 cfm
- Rated operating voltage
- 220 V - 240 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 129 W; At 60 Hz: 129 W
- Dimensions
- Width: 400 mm; Height: 133 mm; Depth: 400 mm
- Installation depth
- 34.6 mm
- Mounting cut-out
- Width of opening: 258 mm; Depth of opening: 258 mm
- Protection category IP to IEC 60 529
- IP 21 without filter mat; IP 54 including pleated filter
- Protection category NEMA
- NEMA 12
- Control interface
- Yes
- Operating temperature range
- -20 °C...55 °C; -4 °F...131 °F
- Storage temperature range
- -40 °C...70 °C; -40 °F...158 °F
- Noise pressure level
- At 50 Hz: 60 dB(A); At 60 Hz: 60 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 5.6 kg
- Gross weight
- 5.82 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; 30 - KC Korea; TÜV-certified safety; UL + C-UL - FTTA; UR + C-UR (recognized)
- Colour
- Grey
- Width
- 400 mm
- Height
- 133 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- With protective cover
- Yes
- With filter
- No
- Rated power
- 129 W
- Roof fan
- Yes
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 841 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Noise emission
- 0 dB(A)
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 216–264 V
- Degree of protection (NEMA)
- 12
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177709126
- SAP 1000746492
- Code 8439739
Product Documentation
More from Rittal
Rittal
Connection terminal for lam
3554000
Rittal
Apparathylle 19'' 2U 400mm deep
7119400
Rittal
Enclosure Bracket swing CP60
6206340
Rittal
Segma Channel 25X80 (PW21165)
Rittal
Flexible Cable Conduit 36 mm / roll 25 m
2596000
Rittal
PK Box gr.cover 110X110X66
9506000
Rittal
VX IT empty 600X1800X800
5328190
Rittal
Rittal VX Rear Cable Entry Section for 1000 mm Wide Enclosures
8618812
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3140500?
- 3140500 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 3140500.
- What is the HS code for 3140500?
- The customs tariff (HS) code for 3140500 is 8414.59.
- Who manufactures 3140500?
- 3140500 is a Rittal product in the Enclosures range.
- Is a datasheet available for 3140500?
- Yes — the 3140500 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3140500?
- The minimum order quantity is 1.
- Is 3140500 available?
- Yes — 3140500 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
