Rittal

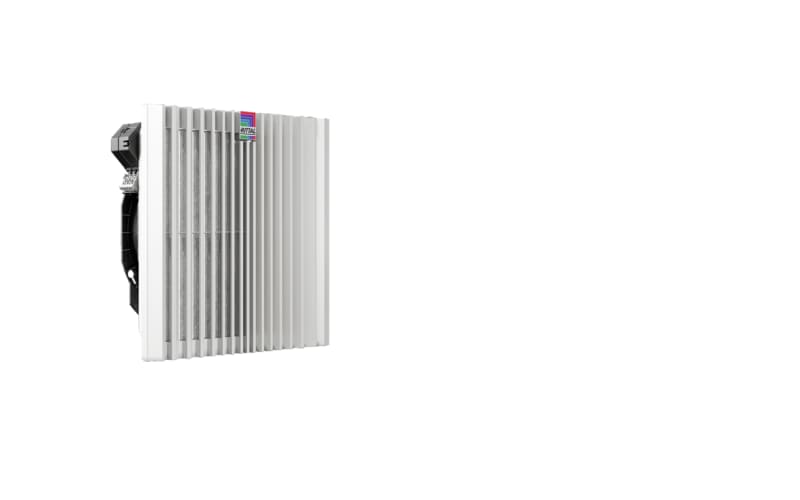

Filter Fan 867 m³/h (3244700)
Part number3244700EAN / GTIN4028177997912HS code8414.59
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3244700 Manufacturer description: SK Blue e+ filter fan, 867/910 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD; 323 x 323 x 156 mm, RAL 7035. SK Blue e+ fan- and filter unit, 867/910 m³/h, 230 V, 1~, 50 Hz/60 Hz, RAL 7035.
Technical Specifications
- Manufacturer part number (MPN)
- 3244700
- EAN / GTIN
- 4028177997912
- Sales unit
- pcs
- Model designation
- SK 3244.700
- Product type
- Blue e+ filter fan
- Version
- wall-mounted
- Material
- Plastic
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including pleated filter
- Fan
- Diagonal, 1~ capacitor motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 867 m³/h; At 60 Hz: 910 m³/h; At 50 Hz: 510.3 cfm; At 60 Hz: 535.61 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 700 m³/h; At 60 Hz: 770 m³/h; At 50 Hz: 412 cfm; At 60 Hz: 453.2 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 114.4 W; At 60 Hz: 153.5 W
- Dimensions
- Width: 323 mm; Height: 323 mm; Depth: 156 mm
- Installation depth
- 136 mm
- Mounting cut-out
- Width of opening: 292 mm; Cut-out height: 292 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -30 °C...55 °C; -22 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 64 dB(A); At 60 Hz: 66 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 4.8 kg
- Gross weight
- 5 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; 30 - KC Korea; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Grey
- Width
- 323 mm
- Height
- 323 mm
- Depth
- 156 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- No
- With filter
- Yes
- Rated power
- 114.4 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 700 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Noise emission
- 0 dB(A)
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177997912
- SAP 1200740745
- Code 83882245
Product Documentation
Document preview: Rittal 3244700 — Data Sheet (OEM)
