Rittal
Flatbox 15HE, 400mm DEEP
Part number7507030EAN / GTIN4028177551428HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

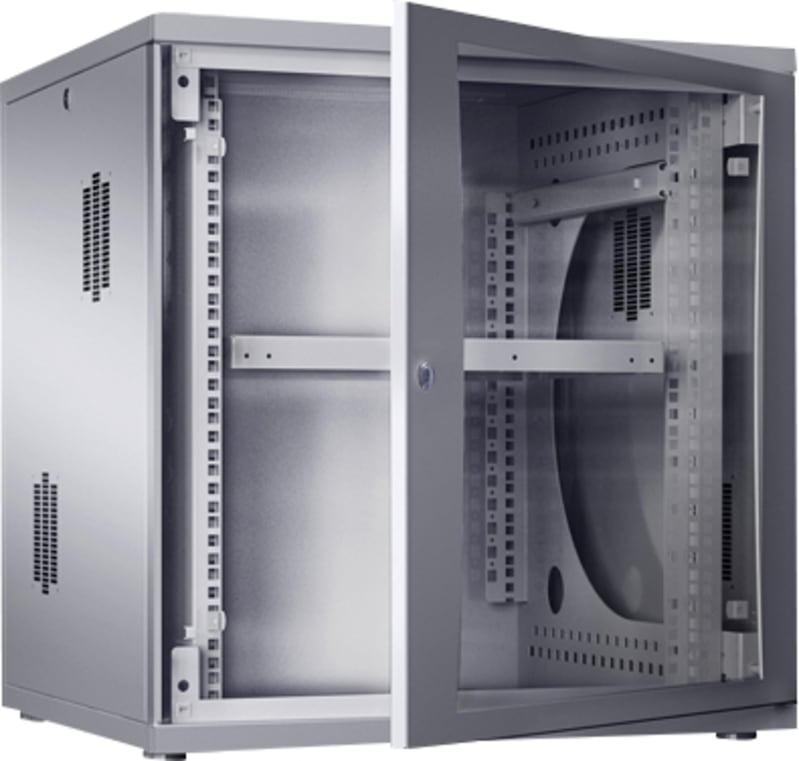

Rittal 7507030 Manufacturer description: DK FlatBox, WHD: 600x758x400 mm, 15 U, with 482.6 mm (19") mounting frame. FlatBox 15HE, 400mm deep.
Technical Specifications
- Manufacturer part number (MPN)
- 7507030
- EAN / GTIN
- 4028177551428
- Sales unit
- pcs
- Model designation
- DK 7507.030
- Product type
- FlatBox
- Version
- with 19" mounting frame
- Material
- Carbon steel; Viewing window: Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Supply includes
- Flat-packed enclosure; 1 wall section; 2 basic supports; 2 roof/base plates, with cut-outs for cable entry via brush strips; 2 side panels, lockable; 1 glazed door, lockable, security lock 3524 E, door catch freely selectable; Connection components for tool-free, fast assembly; Grounding kit for system-compatible grounding of all enclosure parts; 19" mounting frame
- Height units
- 15 U
- Dimensions
- Width: 600 mm; Height: 758 mm; Depth: 400 mm
- Installation height for components
- 15 U
- Load capacity
- max. 750 N
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 28.5 kg
- Gross weight
- 29 kg
- PCF/VE (cradle-to-gate)
- 114.3 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ETIM 8
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- Passive
- Width
- 600 mm
- Height
- 758 mm
- Depth
- 400 mm
- Number of height units
- 15
- Max. load capacity
- 75 kg
- With roof plate
- No
- With earthing
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177551428
- SAP 1000705020
- Code 8189962
Product Documentation
Document preview: Rittal 7507030 — Data Sheet (OEM)
More from Rittal
Rittal
Plastic Enclosure AX m. window 600X600X200
1467000
Rittal
Cablesettt AWG 6 6 pcs
9340890
Rittal
Spare Filter Mat SK 3324/25
3172100
Rittal
Filter Fans 700M³/h 230V RAL 9005
3244108
Rittal
Filter Fan 867 m³/h (3244700)
Rittal
Cablefangsrail VX 800 2 pcs
8619420
Rittal
PDU basic 32A/1P 24XC13+4XC19
7979116
Rittal
PK BOX KL.Cover 182X180X111
9518100
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 7507030?
- 7507030 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 7507030.
- What is the HS code for 7507030?
- The customs tariff (HS) code for 7507030 is 9403.20.
- Who manufactures 7507030?
- 7507030 is a Rittal product in the Office & Onboard Equipment range.
- Is a datasheet available for 7507030?
- Yes — the 7507030 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 7507030?
- The minimum order quantity is 1.
- Is 7507030 available?
- Yes — 7507030 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
