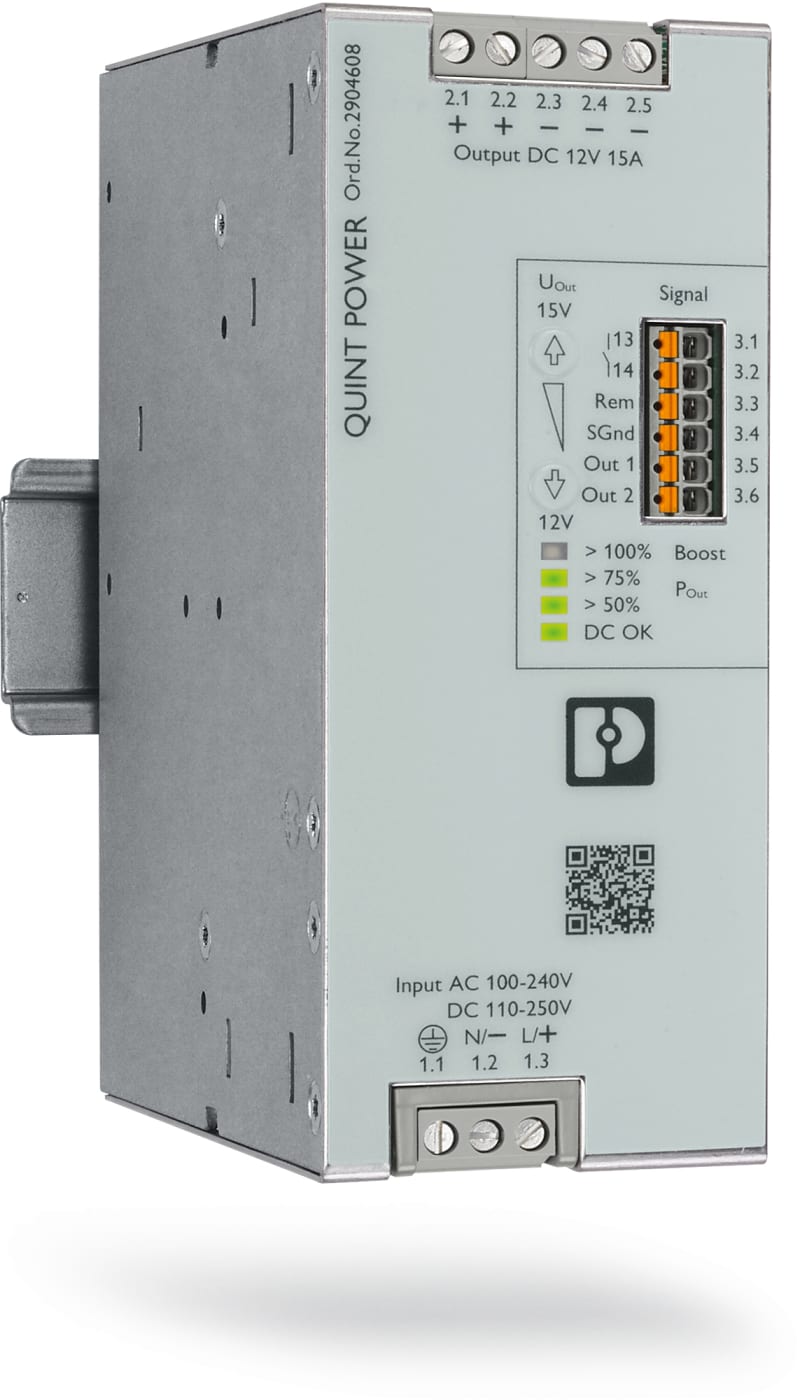

Phoenix Contact QUINT4 12 VDC 15 A primary-switched power supply
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/1AC/12DC/15 is a primary-switched DIN-rail power supply with a single-phase AC input and adjustable 12 VDC output. It delivers 15 A nominal (20 A max) at 180 W with short-circuit protection and stabilised output. Screw connection, IP20, built-in dimensions 50 x 130 x 125 mm.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/12DC/15
- EAN / GTIN
- 4055626355054
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC
- 2nd secondary output voltage
- 12 V
- Max. output current 1
- 20 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 12 V
- Nominal value output current 1
- 15 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power consumption
- 221 VA
- Power output
- 180 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Built-in width
- 50 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 50 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626355054
- SAP 1200661266
- Code 83095073
Product Documentation
More from Phoenix Contact
Phoenix Contact

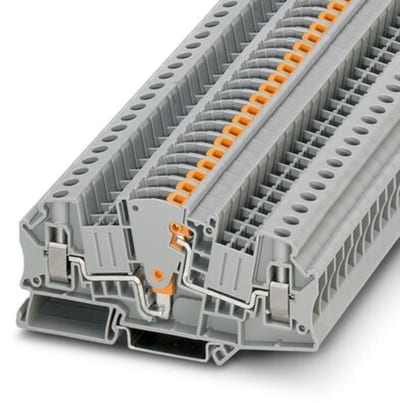

Phoenix Contact UTME 6 screw-clamp knife-disconnect terminal
Phoenix Contact

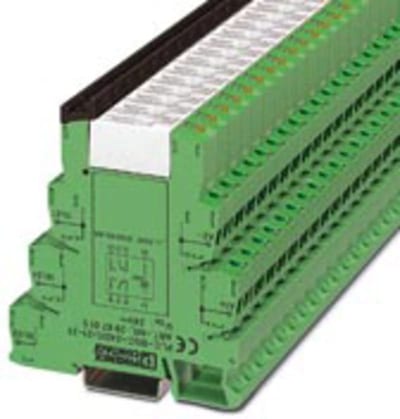

Relay Complete 2 Changeover 14mm (plc-RSC- 24UC/21-21)
PLC-RSC- 24UC/21-21
Phoenix Contact

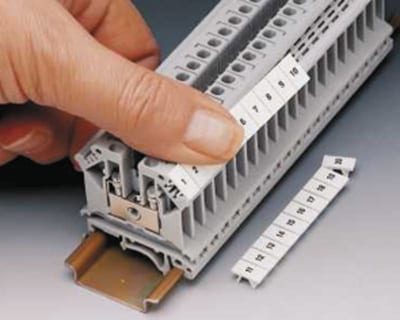

Marking Strip ZB 5 LGS 121-130
ZB 5,LGS:FORTL.ZAHLEN 121-130
Phoenix Contact

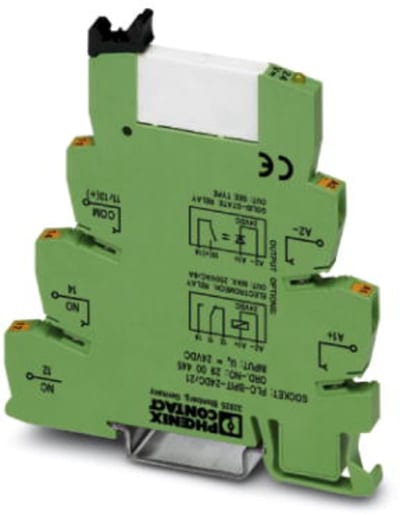

Relay Complete 1 Changeover 6.2 MM (plc-RPT- 24DC/21AU)
PLC-RPT- 24DC/21AU
Phoenix Contact

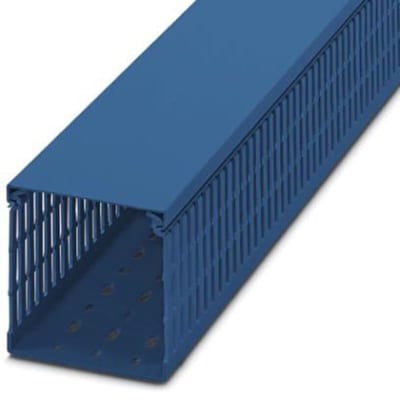

Cable TRUNKING, BLUE, B 100 MM, H 100 MM (1216404)
Phoenix Contact

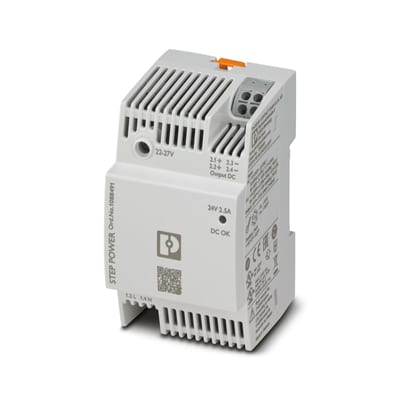

Phoenix Contact STEP3-PS/1AC/24DC/2
