Phoenix Contact

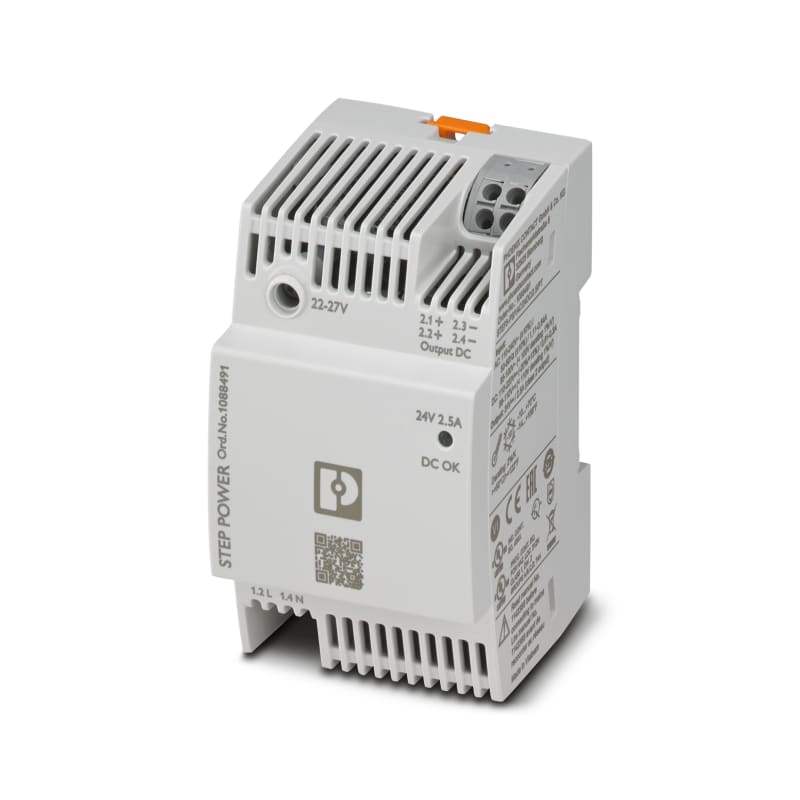

Phoenix Contact STEP3-PS/1AC/24DC/2
Part numberSTEP3-PS/1AC/24DC/2.5/PTEAN / GTIN4055626890227HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STEP3-PS/1AC/24DC/2.5/PT STEP3-PS/1AC/24DC/2.5/PT.
Technical Specifications
- Manufacturer part number (MPN)
- STEP3-PS/1AC/24DC/2.5/PT
- EAN / GTIN
- 4055626890227
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 22–27 V
- Max. output current 1
- 2.5 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 2.5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–264 V
- Rated supply voltage AC 60 Hz
- 85–264 V
- Rated supply voltage DC
- 88–350 V
- Output voltage stabilized
- Yes
- Power output
- 60 W
- Stabilized
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- Yes
- Width in number of modular spacings
- 3
- Built-in width
- 54 mm
- Built-in height
- 90 mm
- Direct mounting possible
- Yes
- Width
- 54 mm
- Height
- 90 mm
- Depth
- 61 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Vietnam
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626890227
- SAP 1200628994
- Code 83035941
Product Documentation
Document preview: Phoenix Contact STEP3-PS/1AC/24DC/2 — Specification sheet
More from Phoenix Contact
Phoenix Contact
Component Connector (ST-1N4007)
Phoenix Contact
Coupling Relay (PSR-PS20-1NO-1NC-24DC-SC)
Phoenix Contact
Power Supply Unit (UNO-PS/1AC/24DC/150W)
Phoenix Contact
Phoenix Contact STEP3-PS/1AC/24DC/5/PT
Phoenix Contact
Connector (SACC-M 8MS-3QO-0,5-M)
Phoenix Contact
Singlerelé REL-MR- 24DC/21-21AU
Phoenix Contact
Stainless Steel Cable Tie AISI 316, 7.9x520 mm
1320205
Phoenix Contact
Networkscable (4301371)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy STEP3-PS/1AC/24DC/2.5/PT?
- STEP3-PS/1AC/24DC/2.5/PT can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is STEP3-PS/1AC/24DC/2.5/PT.
- What is the HS code for STEP3-PS/1AC/24DC/2.5/PT?
- The customs tariff (HS) code for STEP3-PS/1AC/24DC/2.5/PT is 8504.40.
- Who manufactures STEP3-PS/1AC/24DC/2.5/PT?
- STEP3-PS/1AC/24DC/2.5/PT is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for STEP3-PS/1AC/24DC/2.5/PT?
- Yes — the STEP3-PS/1AC/24DC/2.5/PT datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for STEP3-PS/1AC/24DC/2.5/PT?
- The minimum order quantity is 1.
- Is STEP3-PS/1AC/24DC/2.5/PT available?
- Yes — STEP3-PS/1AC/24DC/2.5/PT is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
