Phoenix Contact

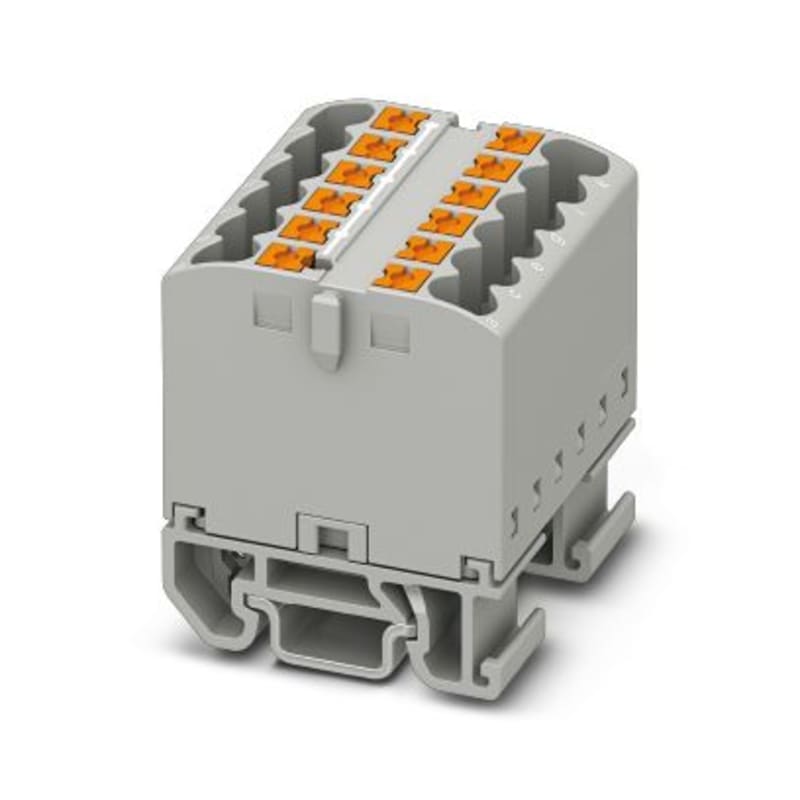

Distribution Block (PTFIX 12X2,5-NS15A GY)
Part numberPTFIX 12X2,5-NS15A GYEAN / GTIN4055626393537HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PTFIX 12X2,5-NS15A GY PTFIX 12X2,5-NS15A GY.
Technical Specifications
- Manufacturer part number (MPN)
- PTFIX 12X2,5-NS15A GY
- EAN / GTIN
- 4055626393537
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Product type
- Distribution Block
- Manufacturer order number
- 3274122
- Connectable conductor cross section solid-core
- 0.14–4 mm²
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 690 V
- Number of levels
- 1
- Number of clamp positions per level
- 12
- Mounting method
- DIN rail (top hat rail) 15 mm
- Operating temperature
- -60–105 °C
- Width
- 31.5 mm
- Width/grid dimension
- 31.5 mm
- Height
- 28.6 mm
- Depth
- 31.4 mm
- Length
- 28.6 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Grey
- Internally connected stages
- Yes
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055626393537
- SAP 1200060086
- Code 81915492
Product Documentation
Document preview: Distribution Block (PTFIX 12X2,5-NS15A GY) — Specification sheet
