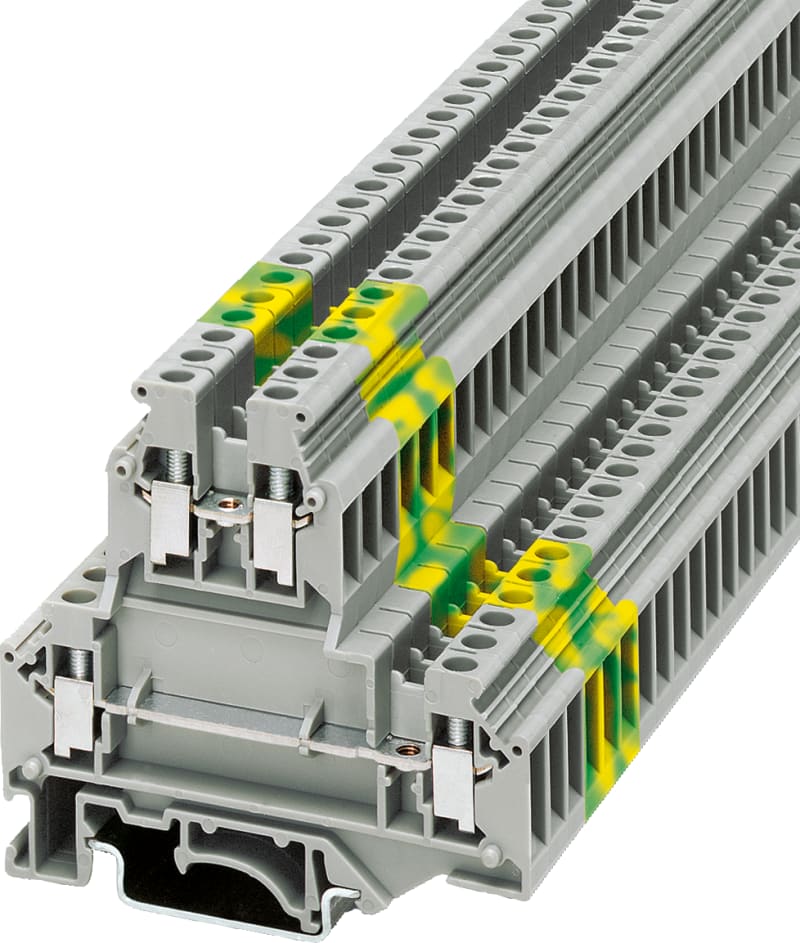

Phoenix Contact UKKB 3 Screw Terminal Block, 2-Level, 0.2–2.5 mm², Grey

Phoenix Contact UKKB 3 is a two-level screw-connection terminal block for DIN top-hat rail (35 mm) with two clamp positions per level and a 5.2 mm grid pitch. It accepts aluminium or copper conductors from 0.2–4 mm² solid or 0.2–1 mm² multi-wired, rated 24 A at 500 V, with a −60 to 105 °C operating range. Supplied in grey; a closing plate is required at the assembly end. Country of origin is Poland and the item ships in packs of 50.

Manufacturer part number (MPN)

UKKB 3

EAN / GTIN

4017918068165

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–4 mm²

Connectable conductor cross section multi-wired

0.2–1 mm²

Rated current In

24 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

2

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

5.2 mm

Width/grid dimension

5.2 mm

Height

67 mm

Depth

62 mm

Length

67 mm

Explosion-tested version 'Ex e'

No

Closing plate required

Yes

Colour

Grey

Internally connected stages

No

Country of origin

Poland

HS Code

8536.90

• EAN 4017918068165
• SAP 1000034976
• Code 8267917
