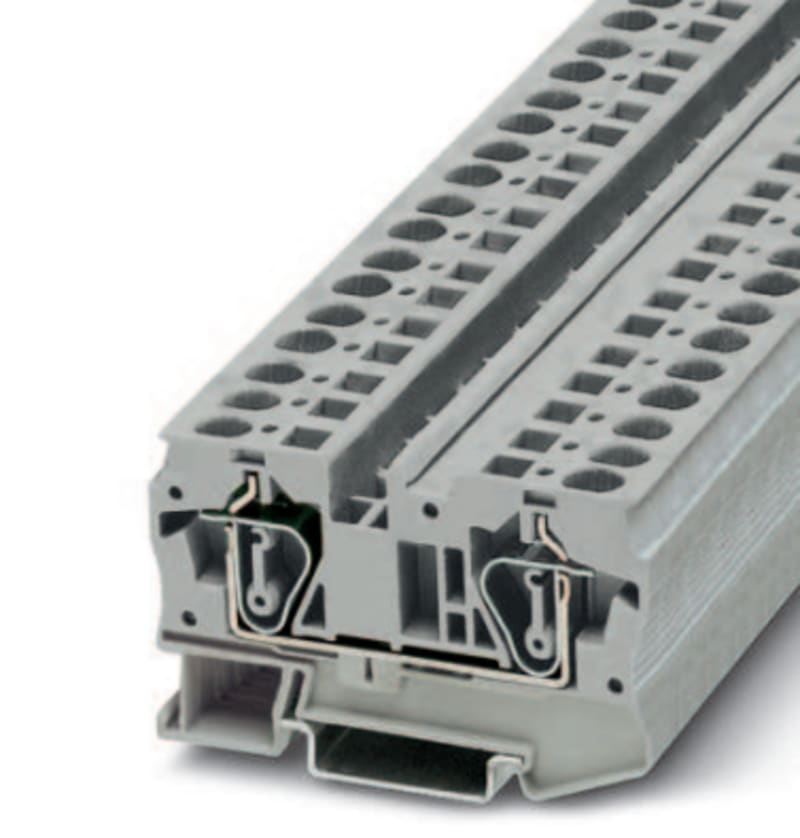

Phoenix Contact ST 6 Spring-Clamp Terminal Block, 0.2–6.0 mm², Grey

Phoenix Contact ST 6 is a single-level spring-clamp terminal block for DIN top-hat rail (35 mm) with two clamp positions and an 8.2 mm grid pitch. It accepts aluminium or copper conductors from 0.2–10 mm² solid or 0.2–6 mm² multi-wired, rated 41 A at 1000 V, over a −60 to 110 °C operating range and is Ex e certified. Supplied in grey with atop connection; a closing plate is required at the assembly end. Country of origin is Germany and the item ships in packs of 50.

Manufacturer part number (MPN)

ST 6

EAN / GTIN

4017918186944

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

0.2-6.0 mm²

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–10 mm²

Connectable conductor cross section multi-wired

0.2–6 mm²

Rated current In

41 A

Rated voltage

1000 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

8.2 mm

Width/grid dimension

8.2 mm

Height

69.5 mm

Depth

43.5 mm

Length

69.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Grey

Internally connected stages

Yes

Country of origin

Germany

HS Code

8536.90

• EAN 4017918186944
• SAP 1000074563
• Code 8780880
