Phoenix Contact

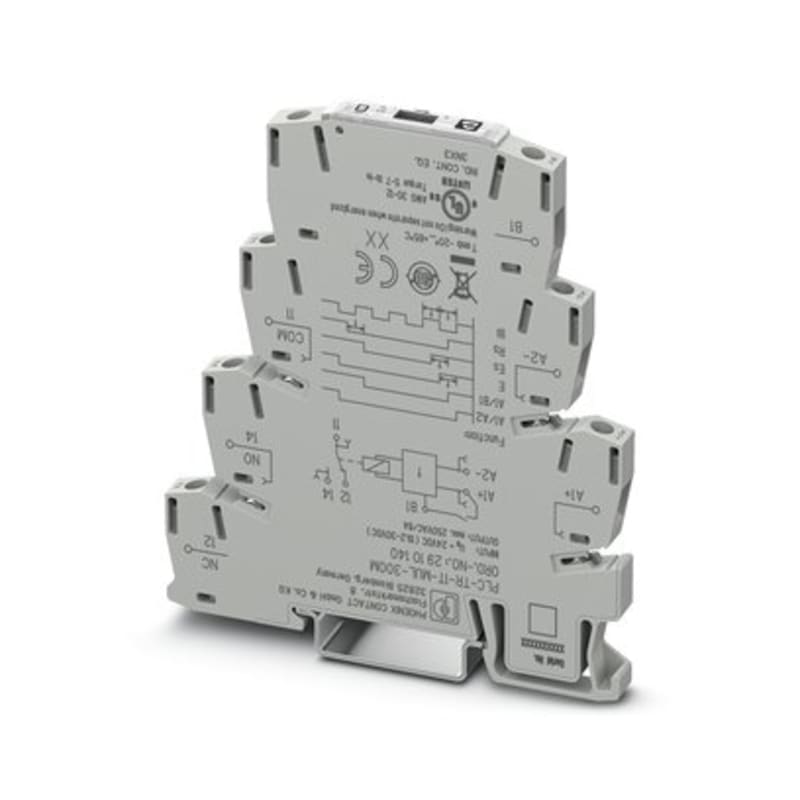

Timer Relay (PLC-TR-1T-MUL-300M)
Part numberPLC-TR-1T-MUL-300MEAN / GTIN4055626430492HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PLC-TR-1T-MUL-300M.
Technical Specifications
- Manufacturer part number (MPN)
- PLC-TR-1T-MUL-300M
- EAN / GTIN
- 4055626430492
- HS code
- 8536.90
- Sales unit
- pcs
- Product type
- Timer Relay
- Manufacturer order number
- 2910140
- Suitable for front mounting
- No
- Type of electric connection
- Screw connection
- Function delay-on energization
- No
- Function delay on de-energization
- Yes
- Function floating contact on energization
- No
- Function floating contact on de-energization
- Yes
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- Yes
- Function flashing, starting with pulse, fixed time
- Yes
- Clock function, starting with pause, variable
- Yes
- Clock function, starting with pulse, variable
- Yes
- With plug-in socket
- No
- Remote operation possible
- No
- Suitable as remote control
- No
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- Number of outputs, delayed, normally closed contact
- 1
- Number of outputs, delayed, change-over contact
- 1
- Outputs, reversible delayed/undelayed
- No
- With semiconductor output
- No
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Width
- 6.2 mm
- Height
- 80 mm
- Depth
- 86 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055626430492
- SAP 1200502460
- Code 82628030
Product Documentation
Document preview: Timer Relay (PLC-TR-1T-MUL-300M) — Specification sheet
