Product Description

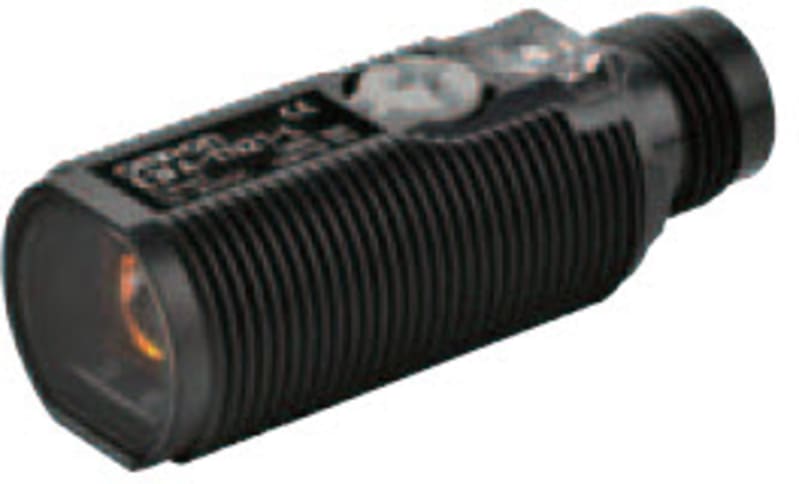

Omron E3FALP22 Photocell, M18, plastic housing direct-sensing background suppression, 200mm, PNP, M12 plug.
Technical Specifications
- Manufacturer part number (MPN)
- E3FALP22
- EAN / GTIN
- 4548583312715
- Sales unit
- pcs
- Connection
- M12 plug
- Thread size
- M18
- Output type
- PNP
- Housing material
- Plastic
- Sensing method
- Background suppression
- Sensing distance
- 20 cm
- Adjustment range
- 0–200 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 200 mm
- Max. switching distance
- 200 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 3
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Width sensor
- 15 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 45 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Response time
- 0.5 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 624 nm
- Type of light
- Polarity free red light
- Light dot
- 150 mm²
- AWG-number
- 24
- Material of cable sheath
- Polyvinyl chloride (PVC)
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583312715
- SAP 1000338750
- Code 8371098
Product Documentation
Document preview: M18,PLASTIC,BGS20CM,PNP,M12 Plug (E3FALP22) — Specification sheet
