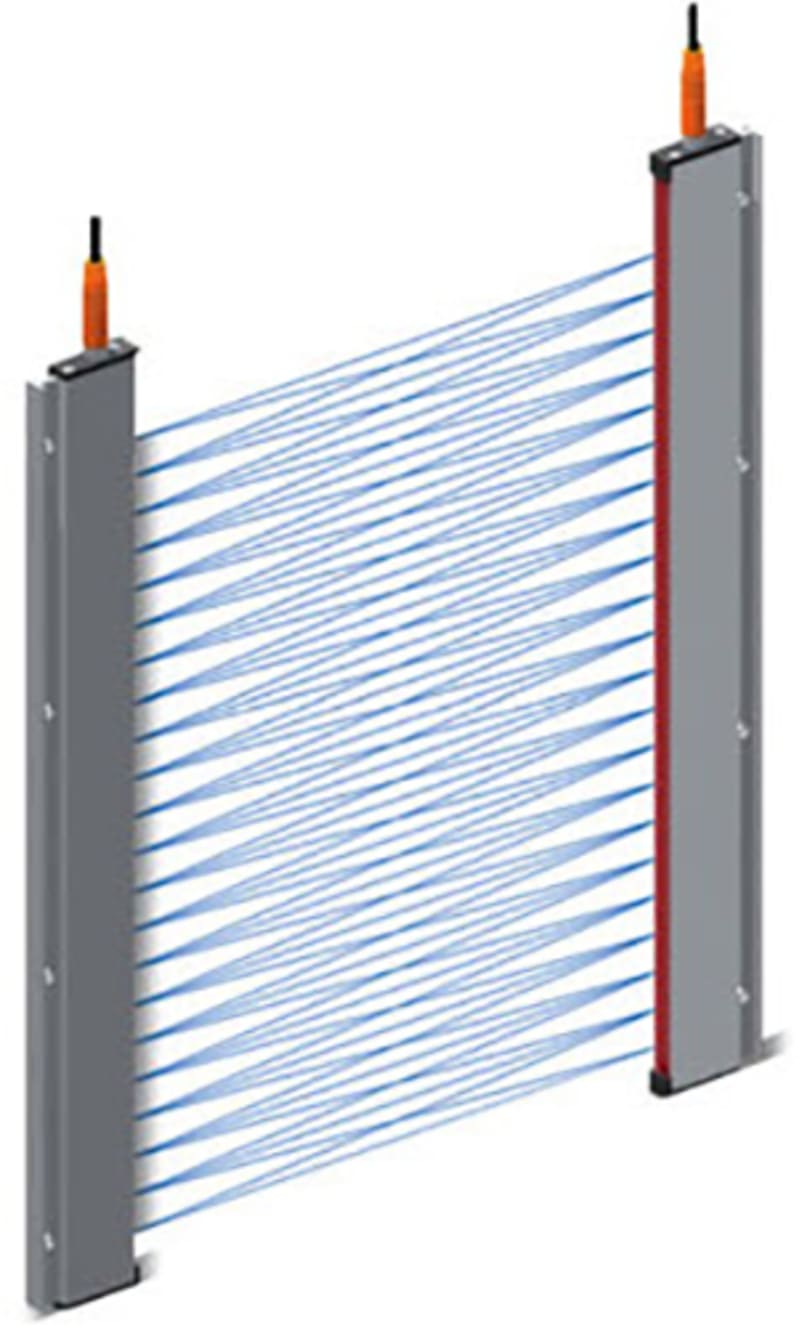

Omron 16-Channel Photocell Light Curtain for Passenger Lifts

Omron F3E-16-T1-5M light curtain designed for mounting in lift doors, supplied as a transmitter-receiver pair. Detection area 1800 mm with 120 mm resolution, PNP/NPN safety output and a 5 m connection cable. Response time 110 ms, transmission range up to 5 m, wavelength 880 nm.

Manufacturer part number (MPN)

F3E-16-T1-5M

EAN / GTIN

4536853908461

HS code

8544.42

Sales unit

pcs

Number of semiconductor outputs with signalling function

1

Type of switching output of the OSSD

PNP/NPN

Type of electric connection

Cable with connector

Operation agent-safety class

Safety class 1

Detection capability for test bodies

1800 mm

Explosion safety category for gas

None

Explosion safety category for dust

None

Cascadable

No

Scope of delivery of the one-way system

Transmitter and receiver

Ambient temperature

-20–60 °C

With muting function

No

Override possible

No

Response time

110 ms

Transmission range of the safety field

5 m

Voltage type

DC

With beam coding

No

With monitoring function downstream switching devices

No

Wavelength of the sensor

880 nm

With restart blockage

No

Country of origin

Germany

HS Code

8544.42

• EAN 4536853908461
• SAP 1000711643
• Code 8329804
